Hubei Ruitu Technology Co., Ltd. is one of the leading manufacturers and suppliers of iveco v70 ev ambulance emergency van in China. If you're going to wholesale the newest iveco v70 ev ambulance emergency van made in China, welcome to get quotation from our factory. All customized products and OEM products are with high quality and competitive price.

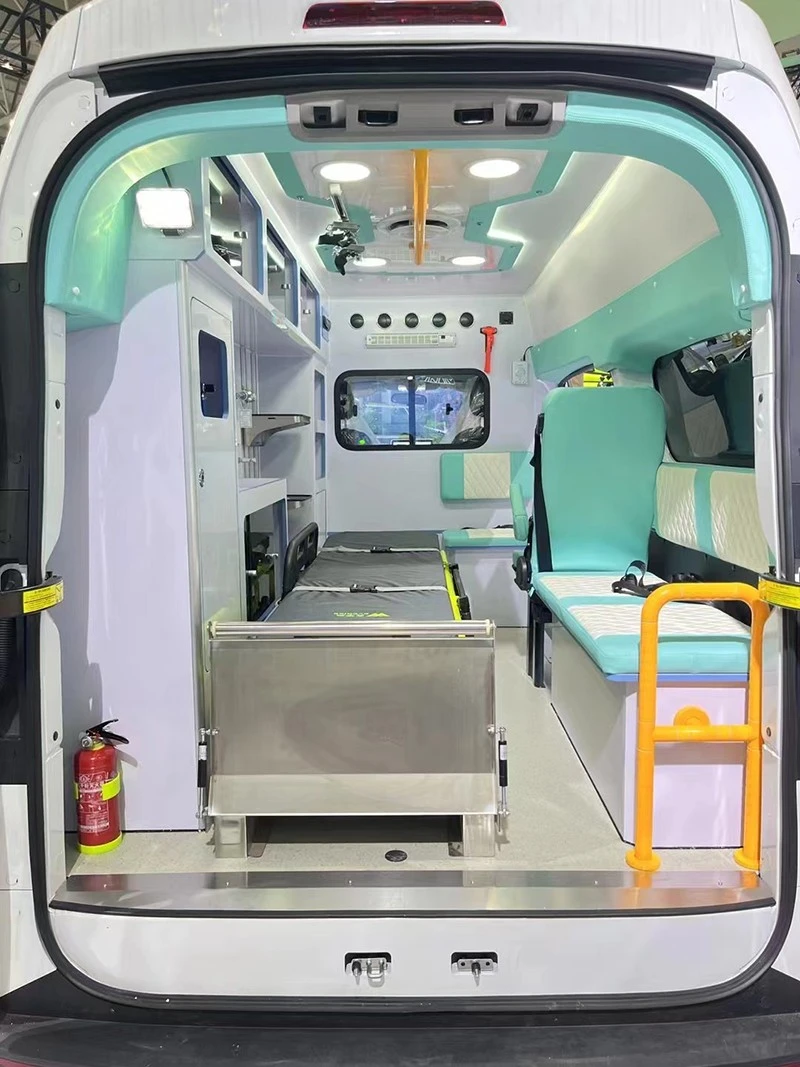

The IVECO V70 EV Ambulance is built on an electric commercial vehicle platform and is designed for emergency medical services, patient transport, and community healthcare operations. The electric drivetrain provides low operating noise (exterior ≤48 dB(A) at standstill; interior ≤67 dB(A) at 80 km/h). The medical compartment can be configured with a stretcher system, oxygen supply, medical cabinets, emergency equipment, and interior lighting according to operational requirements. The interior layout supports both patient transport and routine medical care during transit.
The vehicle complies with EU Whole Vehicle Type Approval (EWVTA) and CEN 1789:2020 standards for medical vehicles. Configurations can be customized to comply with local regulations and customer requirements.
Our Advantages
- Battery capacity (88.6 kWh Li‑FePO₄) covers a full day of urban and suburban runs. Slow charge overnight works fine (5.5 hours for full charge via 7.4 kW AC). Tailpipe emissions: 0 g CO₂/km
- Electricity cost per km is less than half of diesel. Maintenance is simpler – no oil changes, fuel filters, or drive belts. Brake pad life extended by regenerative braking.
- Based on the V70 van, turning radius and length work well in narrow alleys, old districts, and hospital basements. The EV chassis keeps the same strength – no loss in body rigidity after conversion.
- Patient compartment power – including AC, monitors, ventilator, and lights – comes directly from the drive battery. No separate generator needed, no exhaust fumes when parked on scene.
- DC fast charging: 30% to 80% in 42 minutes.
FAQ
Product Parameters
|
Parameters |
Content |
|
Product Name |
Iveco pure electric ambulance |
|
Product Model |
NJ6540FBEV81 |
|
Maximum gross mass |
3495kg |
|
Wheelbase |
3366mm |
|
Vehicle dimensions (length x width x height) |
5364mm x 2030mm x 2540mm |
|
Medical pod dimensions (length x width x height) |
2710mm x 1730mm x 1710mm |
|
Approach/Departure Angle |
18 degrees/21 degrees |
|
Top speed |
130km/h |
|
Motor Model |
TZ202 x SSQC |
|
Battery thermal management |
liquid heat |
|
Minimum ground clearance |
170mm |
|
Braking type |
Front and rear disc brakes |
