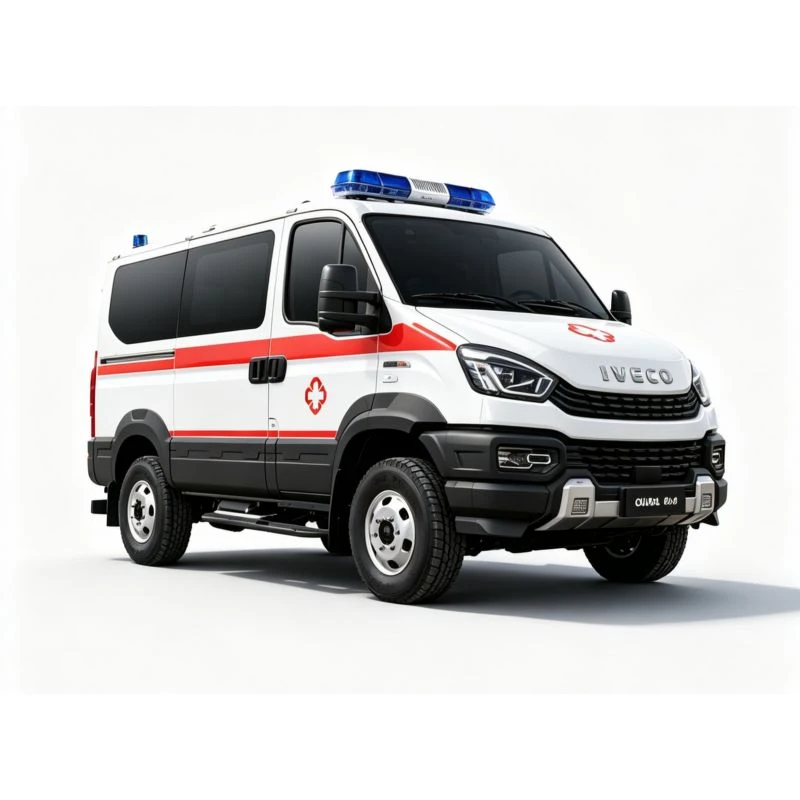

IVECO 4x4 Off-Road Ambulance Truck

IVECO 4x4 Off-Road Ambulance Truck

Details
The IVECO 4x4 Off-Road Ambulance is designed for patient evacuation and medical response on difficult access routes.
Category
Off Road Ambulance
Share to
Send Inquiry
Description
Technical Parameters

Hubei Ruitu Technology Co., Ltd. is one of the leading manufacturers and suppliers of iveco 4x4 off-road ambulance truck in China. If you're going to wholesale the newest iveco 4x4 off-road ambulance truck made in China, welcome to get quotation from our factory. All customized products and OEM products are with high quality and competitive price.



The IVECO 4x4 Off-Road Ambulance combines full-time four-wheel drive, three differential locks, a 3.0 L diesel engine, ZF 8-speed automatic transmission, and an elevated automatic stretcher. The medical compartment provides attendant seating, storage, oxygen provision, equipment mounts, lighting, warning equipment, and inverter power. Safe route planning must still consider water flow, slope, ground condition, loading, tyre pressure, evacuation distance, communication coverage, and local chassis support.




e63abbf702a9dc0edfccf74228fb693e001



Our Advantages



  • Three-lock traction system: Front, centre, and rear differential locks complement full-time four-wheel drive when surfaces become uneven or slippery.
  • Automatic stretcher loading: The elevated electric stretcher reduces lifting effort and provides a controlled transition between ground level and the medical compartment.
  • Compact all-terrain package: A 3065 mm wheelbase and 5065 mm overall length balance usable medical space with access on tighter routes.
  • Mission-based integration: Oxygen, storage, warning, communications, inverter power, and medical-device mounts can be selected for the evacuation scenario.



cca74e53311f97f97802709f905d9db2001



FAQ



Q: Does the listed wading depth of the IVECO Ouba 4x4 Off-Road Ambulance apply in every condition?

A: No. The 1000-1200 mm figure is from the source specification. Safe wading depends on water flow, bottom condition, entry speed, sealing, air intake, axle vents, electrical installation, vehicle load, and the approved operating procedure.

Q: When should the differential locks be used?

A: They should be engaged only as described in the chassis manual and for conditions that require additional traction. Incorrect use on high-grip surfaces can affect steering and damage drivetrain components.

Q: Can the ambulance be supplied with right-hand drive?

A: Chassis availability must be confirmed for the destination market. If a right-hand-drive base is available, the interior, controls, door use, axle load, and registration documents must be engineered around that exact chassis.

Q: How is the automatic stretcher powered if the main electrical system fails?

A: The selected stretcher should include the manufacturer's emergency or manual recovery procedure. Battery condition, charging, connectors, mechanical locks, and a backup loading method should be part of routine checks and crew training.

Q: What spare parts are recommended for remote operation?

A: The list should be based on route remoteness and local service coverage. It commonly includes chassis filters and belts, tyre service items, electrical fuses and relays, lighting components, stretcher wear parts, oxygen fittings, and selected ambulance-body hardware.





Product Parameters



Parameter

Specification

Vehicle Type

4x4 off-road ambulance

Drive Type

Full-time four-wheel drive

Overall Dimensions

5065 x 2090 x 2535 mm

Gross Vehicle Weight

3800 kg

Curb Weight

2920 kg

Wheelbase

3065 mm

Engine

3.0 L diesel

Transmission

ZF 8-speed automatic

Maximum Power

132 kW

Maximum Torque

425 N m

Tyres

LT265/75R16LT 10PR

Differential Locks

Front + centre + rear, 3 locks

Wading Depth

1000-1200 mm

Brake System

Four-wheel disc brakes
