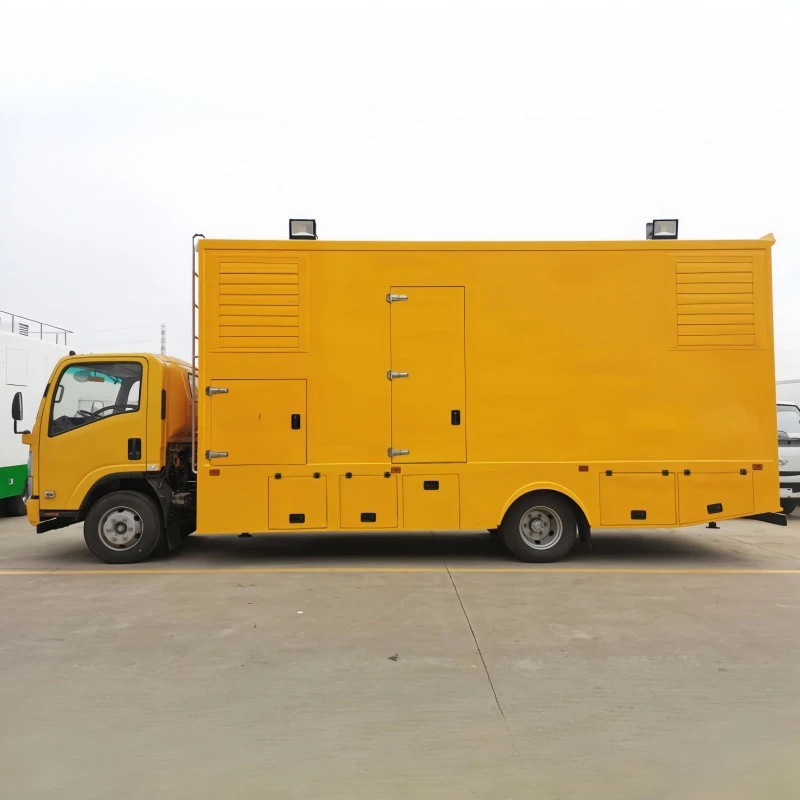

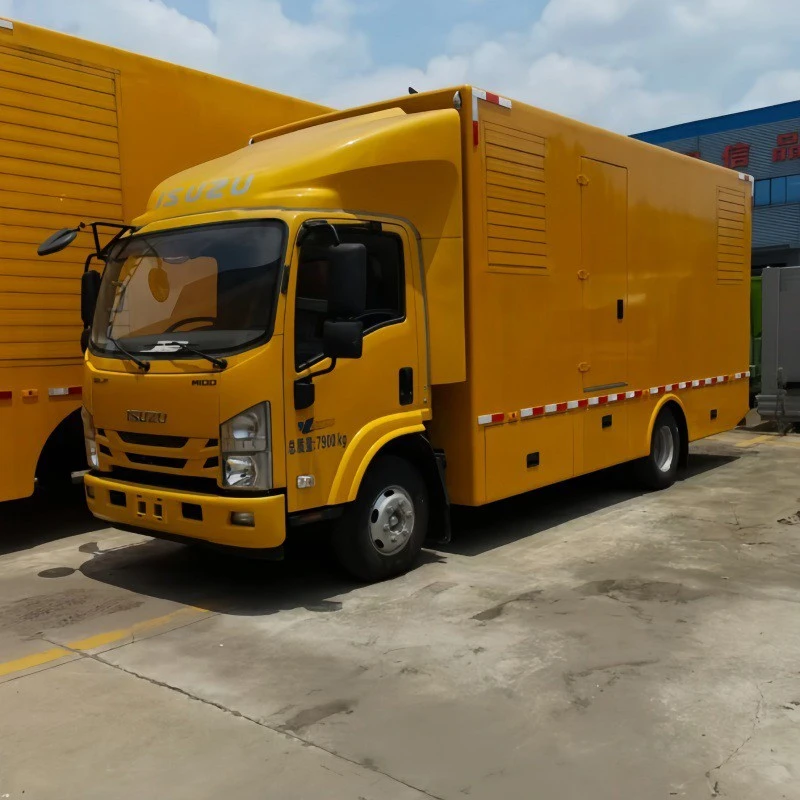

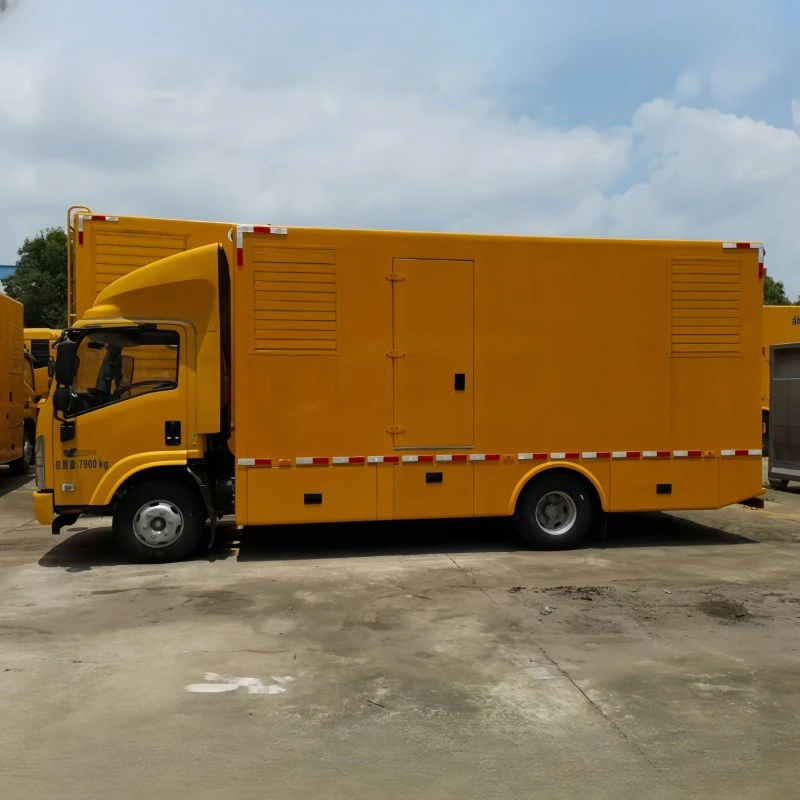

The ISUZU 3000m³ h Flood Pump Truck is a high-capacity mobile pumping vehicle designed for urban waterlogging, flood emergency response, construction site dewatering, and low-lying area water management. Equipped with a high-flow centrifugal pump, it can deliver up to 3000 cubic meters of water per hour, enabling rapid drainage of flooded areas.
Built on an ISUZU heavy-duty commercial chassis, the truck combines high load capacity with road maneuverability, allowing efficient operation on city streets, rural roads, and challenging worksite conditions. The pump and piping systems are made from corrosion-resistant materials, suitable for rainwater, surface water, and lightly contaminated water, ensuring reliable long-term operation.
The vehicle can be equipped with long suction and discharge hoses and mobile control systems for quick deployment and remote operation. It is suitable for municipal flood control, industrial park drainage, emergency rescue, and large-scale dewatering projects, providing an efficient and dependable solution for urban, industrial, and rural water management.
Our Advantages
1.The vehicle can be equipped with a high-capacity centrifugal pump designed for fast water transfer and continuous drainage operations.
2.Pump configuration, suction and discharge hose sizes, control systems, and auxiliary equipment can be customized.
3.Optional remote monitoring and control systems can be installed to improve operational safety and management efficiency.
4.The suction performance depends on the pump configuration and operating conditions, and can be customized for specific drainage requirements.
FAQ
Product Parameters
|
Parameter |
Content |
|
Maximum Gross Mass |
10550 kg |
|
Drainage System |
3000 m³/h, equipped with 6 portable ultra-lightweight submersible pumps. Single pump flow rate: 500 m³/h, total flow rate: 3000 m³/h, head: 10 m, power: 22 kW, single pump weight: 32 kg. |
|
Generator Set |
100 kW |
|
Wheelbase |
4475 mm |
|
Vehicle Dimensions (L×W×H) |
8280 mm × 2350 mm × 3520 mm |
|
Chassis Model |
QL1110ANMAY |
|
Approach/Departure Angle |
17°/10° |
|
Tires |
235/75R17.5 16PR |
|
Engine Model |
4HK1-TCG61 |
|
Engine Displacement |
5193 mL |
|
Emission Standard |
China VI |
|
Rated Power |
139 kW |
|
Maximum Speed |
110 km/h |
|
Drive Type |
Rear Wheel Drive |
|
Minimum Ground Clearance |
450 mm |
|
Transmission |
Isuzu MLD 6-speed transmission |
|
Number of Axles |
2 |
