Hubei Ruitu Technology Co., Ltd. is one of the leading manufacturers and suppliers of jmc 1000m³ h drainage pump truck in China. If you're going to wholesale the newest jmc 1000m³ h drainage pump truck made in China, welcome to get quotation from our factory. All customized products and OEM products are with high quality and competitive price.

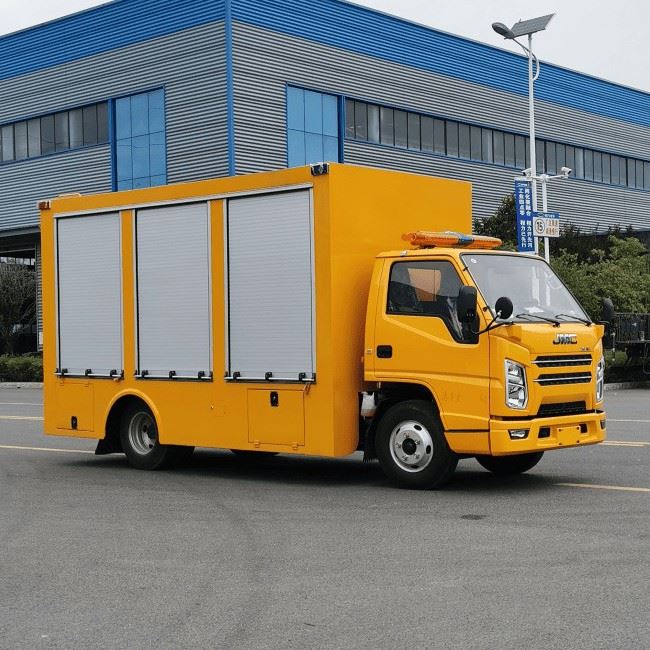

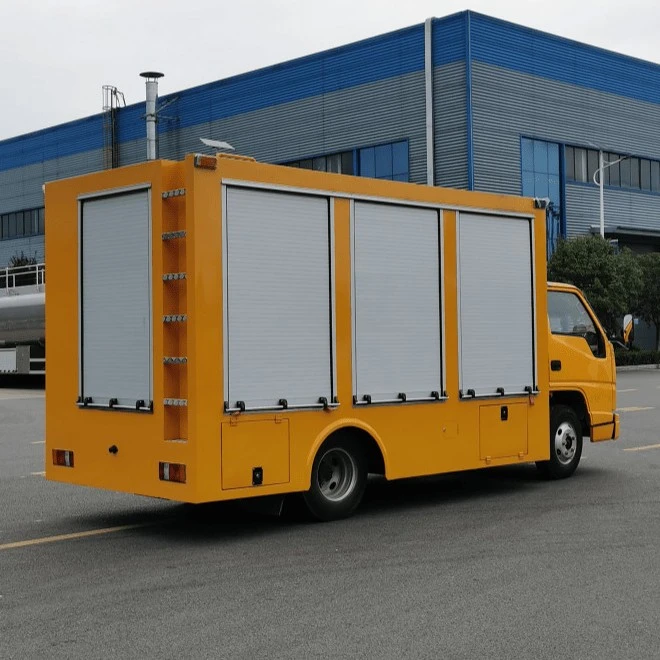

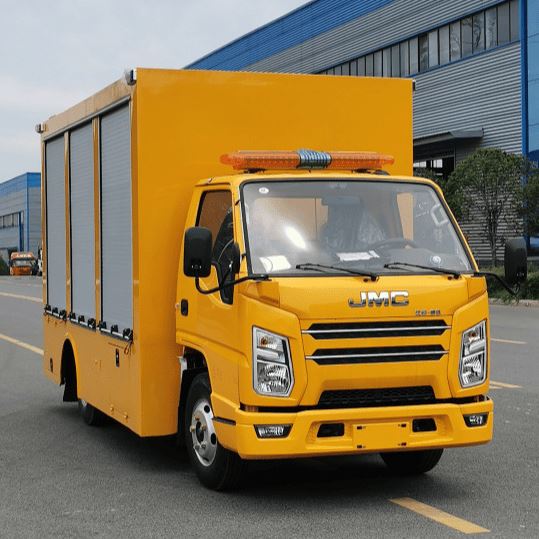

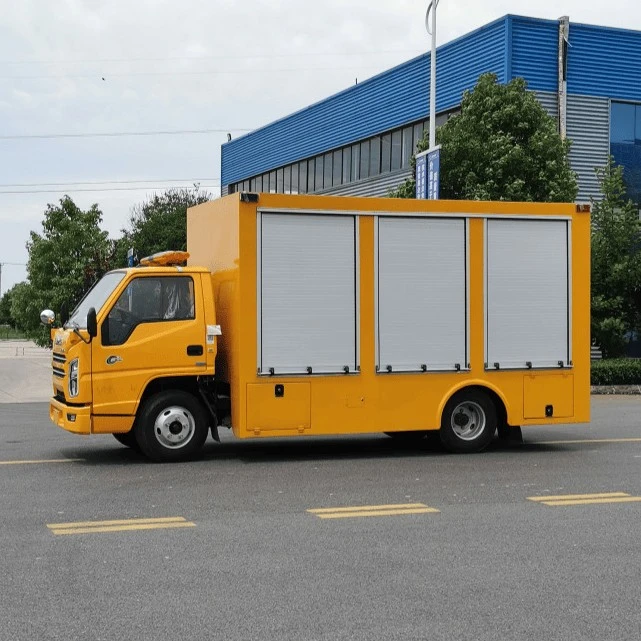

The JMC 1000m³ h Drainage Pump Truck is a high-capacity mobile pumping vehicle designed for urban drainage, flood emergency response, construction site dewatering, and low-lying area water management. Equipped with a large centrifugal pump, it can pump up to 1000 cubic meters of water per hour, providing rapid response to flooding and water accumulation.
Built on a JMC commercial vehicle chassis, the truck offers reliable road performance and load-bearing capacity, allowing efficient operation on city streets, rural roads, and construction sites. The pump and piping systems are made of corrosion-resistant materials, suitable for rainwater, surface water, and lightly contaminated water to ensure stable long-term operation.
The vehicle can be fitted with suction and discharge hoses and mobile control systems for rapid deployment and flexible operation. It is widely used in municipal flood control, industrial park drainage, emergency rescue, and construction dewatering projects, offering an efficient solution for urban and industrial water management.
Our Advantages
1. Control system – The vehicle has an intelligent control system with one-button start, remote monitoring, and self-diagnosis. In practice, this means the operator can check pump status from the cab or a handheld device without walking to the pump location.
2. Terrain adaptability – The chassis handles unpaved roads, wet ground, and sloped sites. For flood response, the truck can be positioned on a road shoulder or firm ground while the suction hose extends to the water source up to 10-15 meters away.
3. Modular setup – The pump units are portable (32 kg each). Two people can carry one pump to a water collection point. The suction and discharge hoses use quick-connect fittings. Setup time from arrival to pumping is typically under 10 minutes.
FAQ
Product Parameters
|
Parameter |
Content |
|
Maximum Gross Mass |
4495 kg |
|
Drainage System |
1000 m³/h, equipped with 2 portable ultra-lightweight high-speed submersible pumps. Single pump flow rate: 500 m³/h, total flow rate: 1000 m³/h, head: 10 m, power: 22 kW, single pump weight: 32 kg. |
|
Generator Set |
50 kW |
|
Wheelbase |
3360 mm |
|
Vehicle Dimensions (L×W×H) |
5995 mm × 2000 mm × 3050 mm |
|
Chassis Model |
JX1041TG26 |
|
Approach/Departure Angle |
20°/16° |
|
Tires |
7.00R16LT |
|
Engine Model |
JX4D30B6H |
|
Engine Displacement |
2892 mL |
|
Emission Standard |
China VI |
|
Rated Power |
85 kW |
|
Maximum Speed |
100 km/h |
|
Drive Type |
Rear Wheel Drive |
|
Minimum Ground Clearance |
420 mm |
|
Transmission |
5-speed |
|
Front/Rear Overhang (mm) |
1095/1540 |
|
Number of Axles |
2 |
