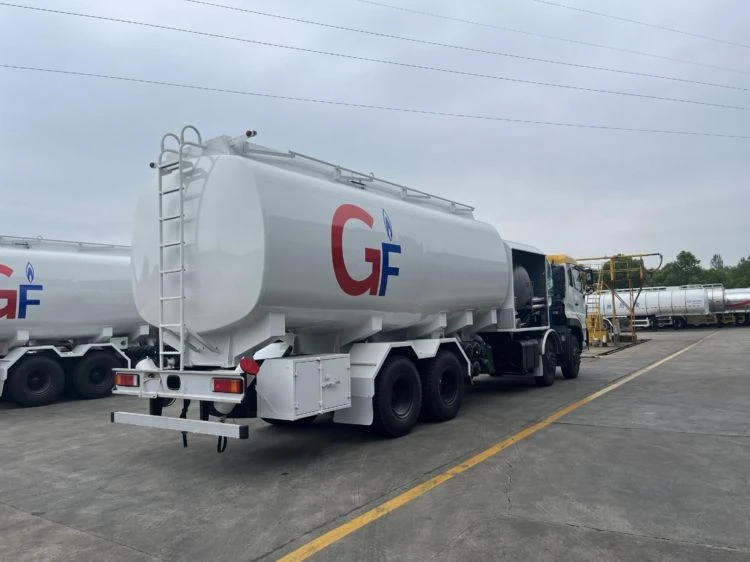

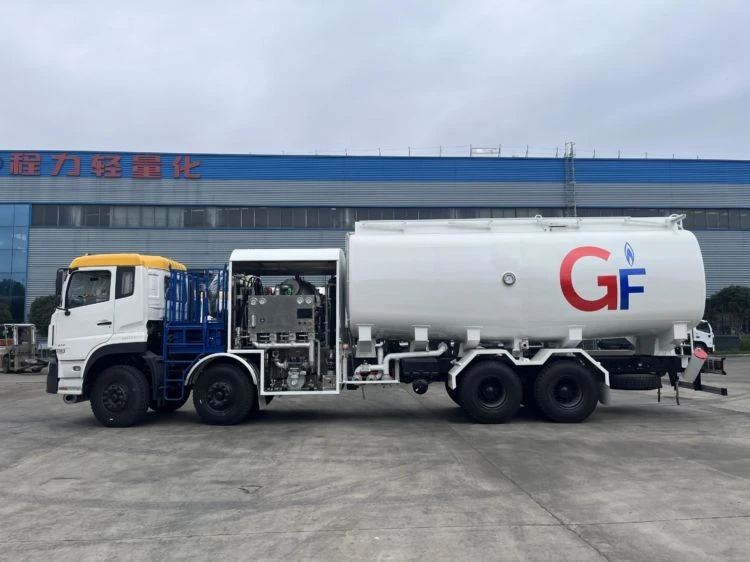

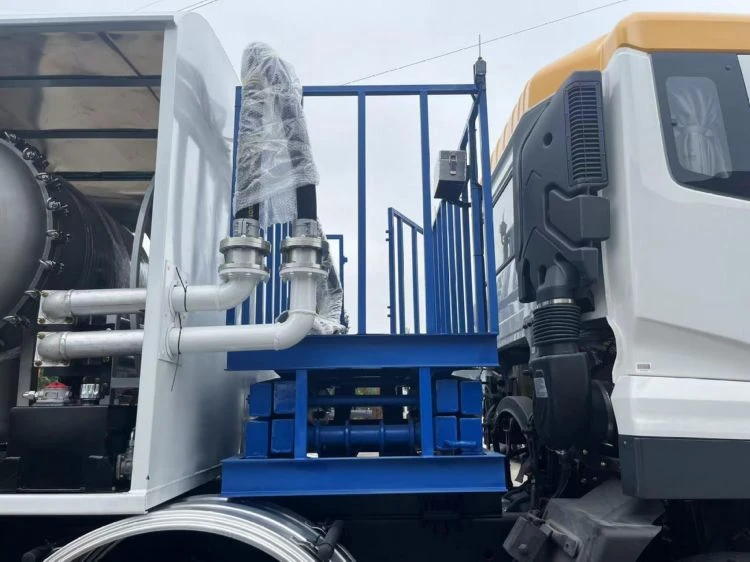

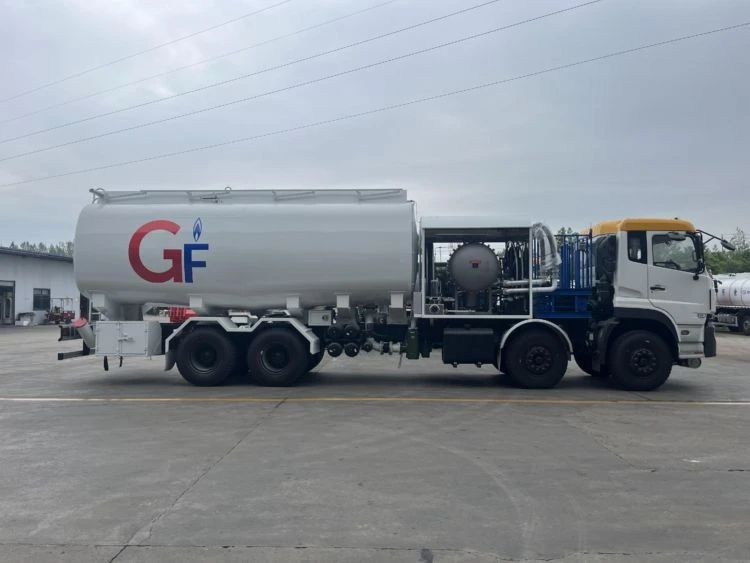

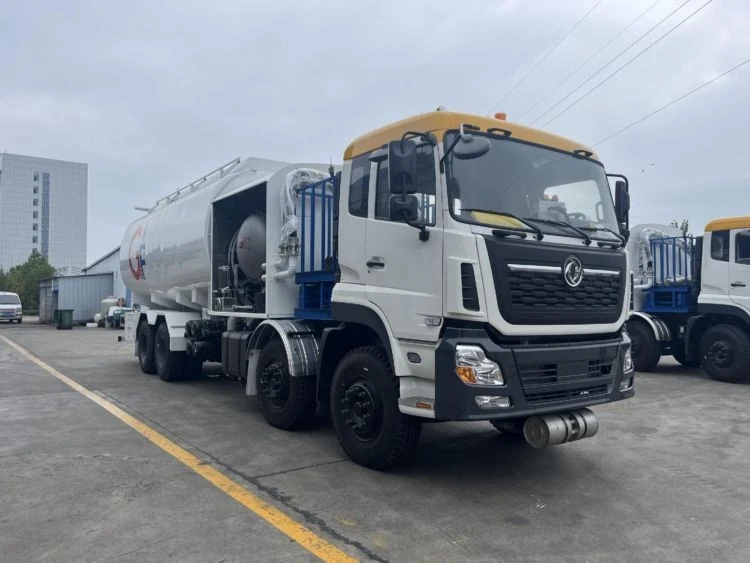

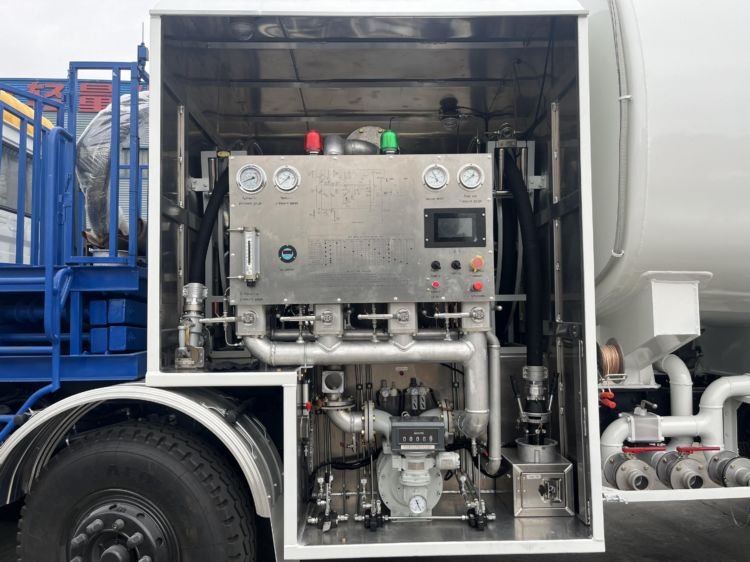

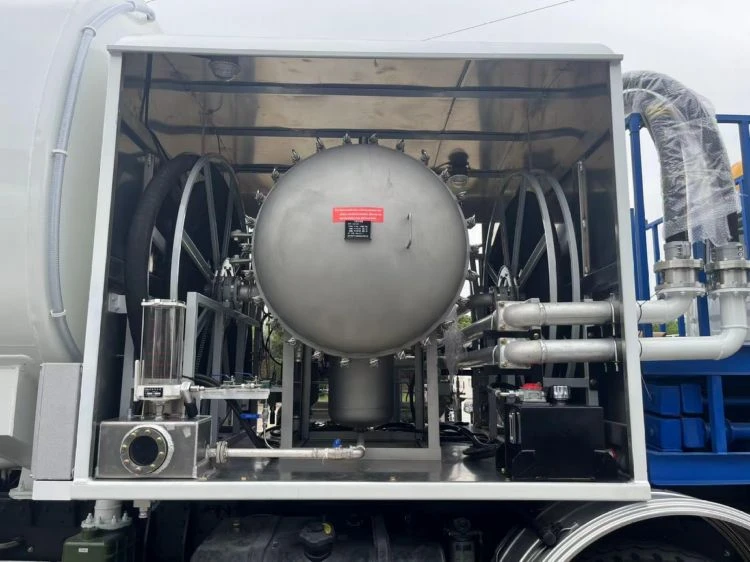

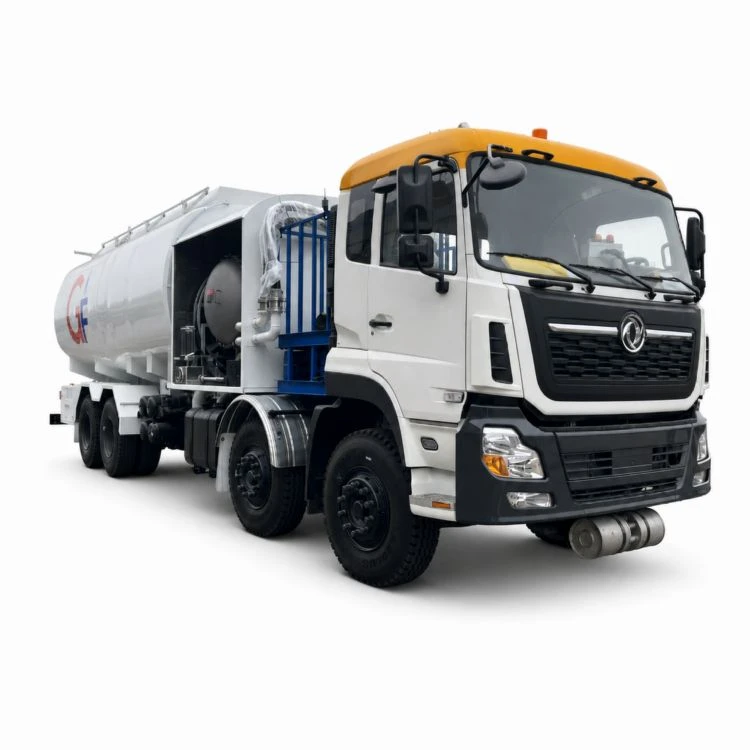

The 30,000 L Heavy-Duty Aircraft Refueling Truck provides a HEPCV nozzle arrangement rated at 1,200 L/min on one line or 2,200 L/min with two lines in the supplied specification. The process train includes filtration, metering, air elimination, Deadman control, high-level protection and closed sampling. A hydraulic work platform can be incorporated when the operating fleet requires elevated connection access.
Our Advantages
More fuel between reloads: The 30 m³ tank increases on-vehicle fuel availability for busy operating windows or sites with longer travel between depot and apron.
Dual-line capability: The stated underwing package provides defined single-line and dual-line flow references, allowing the connection plan to be matched to the customer's aircraft mix.
Integrated risk controls: High-level sensing, anti-overfill, vapor recovery, static control and Deadman functions are specified as coordinated parts of the transfer system.
FAQ
Product Parameters
|
Specification |
Reference Value |
|
Reference configuration |
aircraft refueller; FL-type dangerous-goods vehicle |
|
Permitted fuel |
Aviation kerosene or aviation gasoline |
|
Actual tank volume |
30 m³ (water capacity) |
|

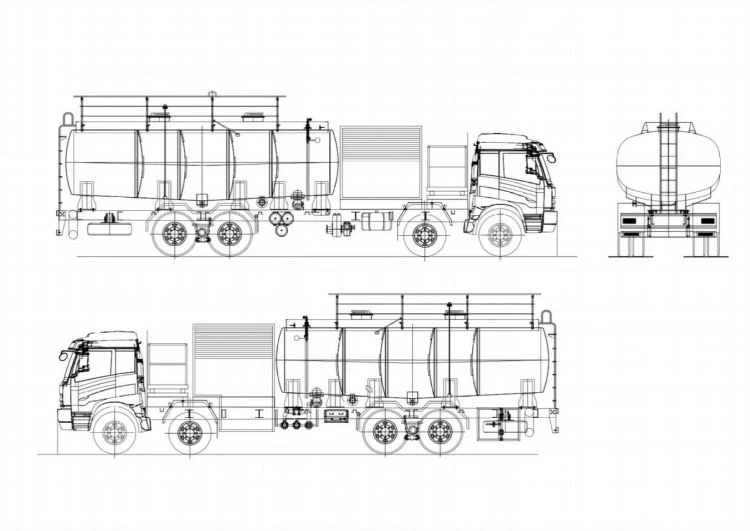

Reference dimensions |
12,500 × 2,550 × 3,950 mm |
|
Gross vehicle mass |
32,000 kg |
|
Curb mass |
10,800 kg |
|
Rated payload |
21,200 kg |
|
Tank material |
5182 aluminum alloy |
|
Shell / head / baffle |
5.6 / 5.8 / 5.6 mm |
|
Tank section |
Quasi-elliptical |
|
Transfer arrangement |

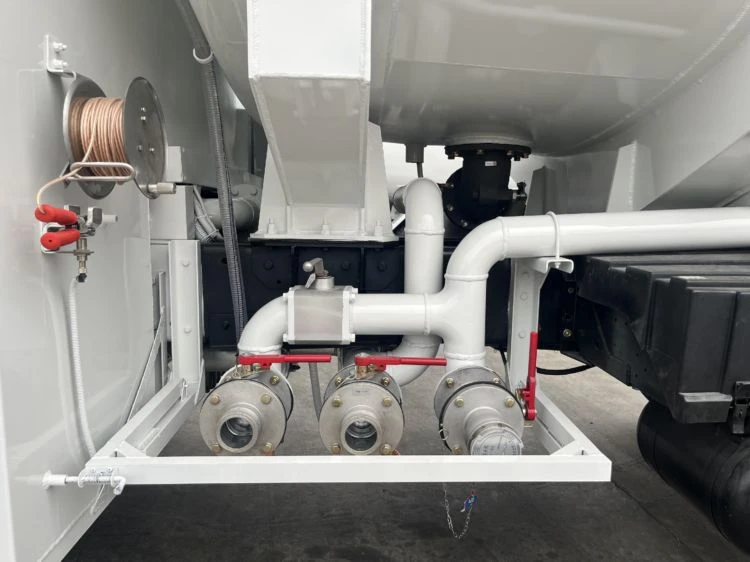

Bottom loading/unloading and top direct filling |
|

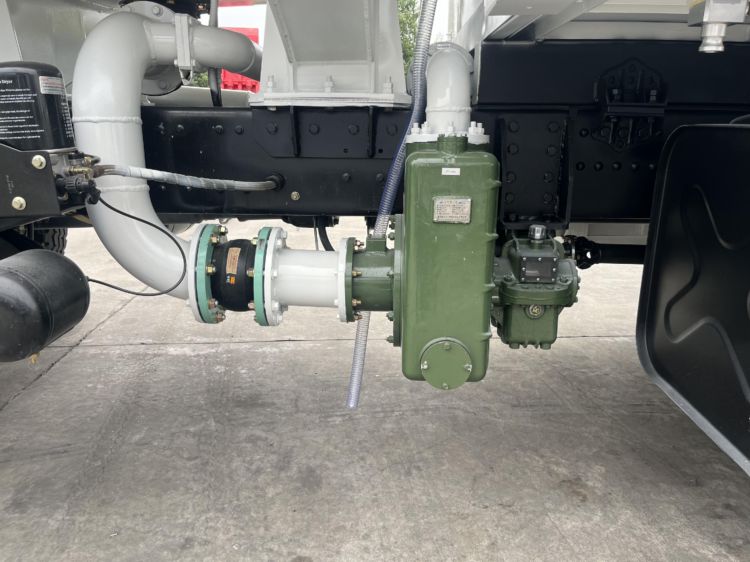

Pumping system |
2,500 L/min |
|
Filter-water separator |
2,500 L/min |
|
Underwing delivery |
1,200 L/min single line; 2,200 L/min dual line |
|
Fuel hose |
DN63 |
|
Manholes / breathers |
2 explosion-proof Euro manholes / 4 breather valves |
|
Bottom and high-level valves |
1 × 8-inch bottom valve; 1 × high-level valve |
|
Measurement |
2,500 L/min flow meter with differential- indication |
|
Control package |
Deadman, in-line control, bypass and pneumatic controls |
|
Protection package |
Anti-overfill, vapor recovery, static reel and high-level sensor |
|
Electrical system |
24 V with explosion-proof junction box and LED lamps |
|
Design reference |
GB18564.1-2006, Part 1, as stated in the supplied specification |
