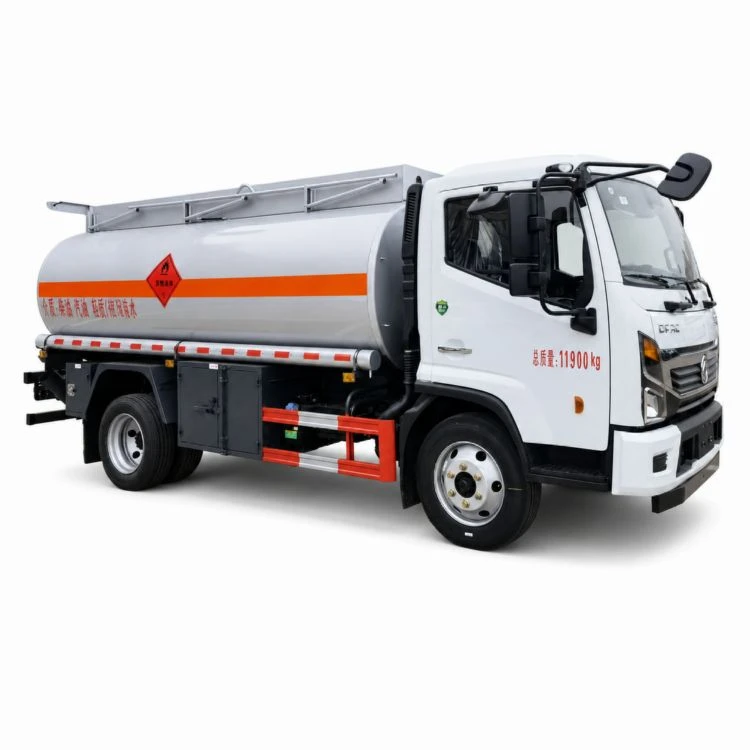

Dongfeng 10 m³ Diesel Fuel Tanker Truck uses a single-compartment tank with a 76/40 pump, one Euro-style manhole, an emergency bottom valve and an overfill probe. Folding top rails, transfer hoses, extinguishers, a rear ladder and a tool box support everyday operation and inspection.
Category
Fuel Tanker Truck
Share to
Send Inquiry
Description
Technical Parameters

Hubei Ruitu Technology Co., Ltd. is one of the leading manufacturers and suppliers of dongfeng 10.4 m³ fuel delivery truck in China. If you're going to wholesale the newest dongfeng 10.4 m³ fuel delivery truck made in China, welcome to get quotation from our factory. All customized products and OEM products are with high quality and competitive price.

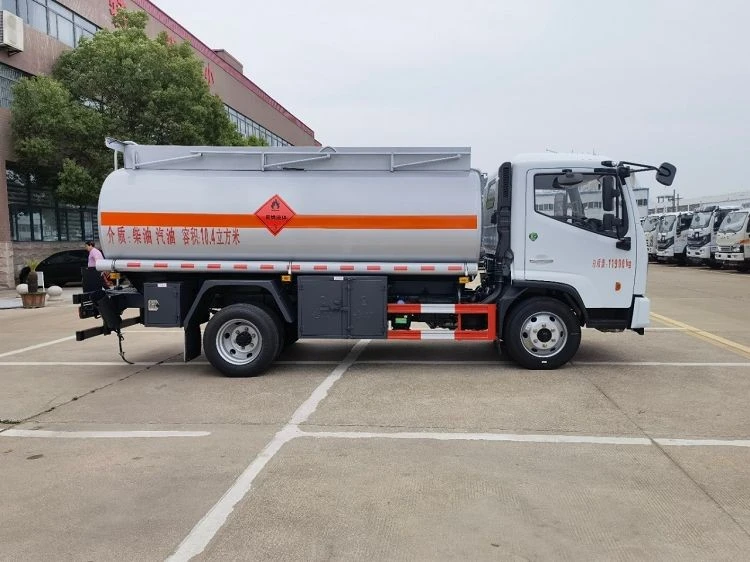

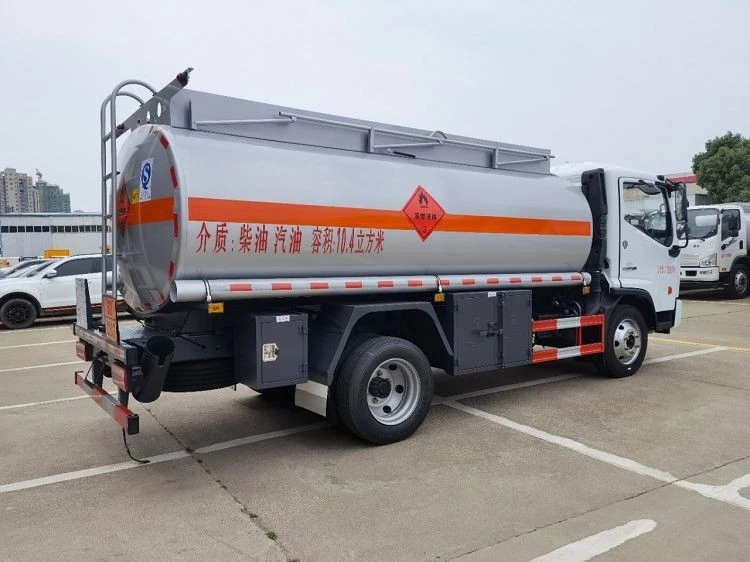

The Dongfeng 10.4 m³ Fuel Delivery Truck packages a relatively large tank on a short 3,390 mm wheelbase for demanding routes and space-limited work sites. Its 180 hp Yunnei engine, eight-speed transmission and 5.286 final-drive ratio are selected for gradeability and low-speed control. The 10.4 m3 tank supports gasoline or diesel service and includes a pump, Euro-style loading equipment, vapour recovery, overfill monitoring and an emergency bottom-valve alarm. The compact turning footprint is useful for mines, mountain roads, agricultural sites and equipment yards. A dispenser can be added when the truck must deliver fuel directly into machines rather than transfer only to storage.

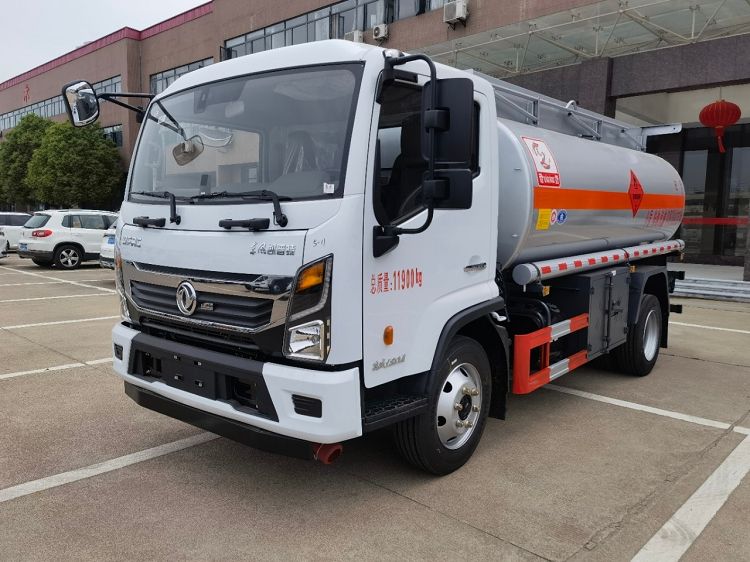

20260805103703001
20260805103717001

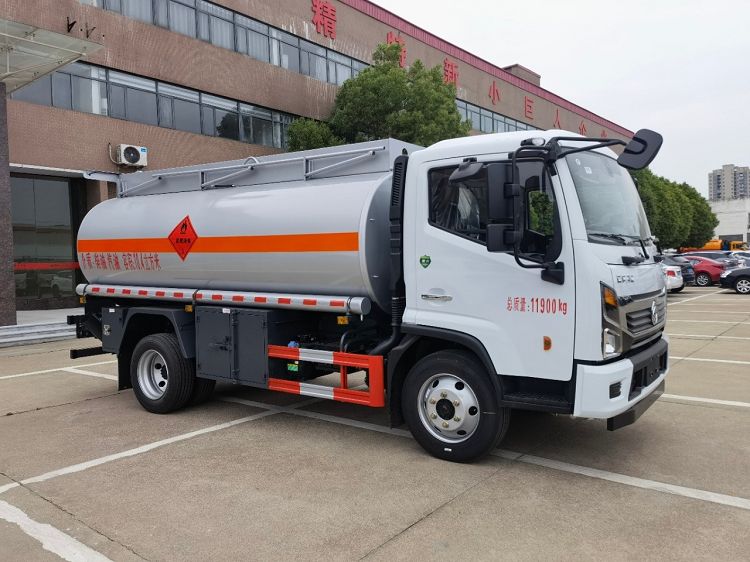

20260805103723001

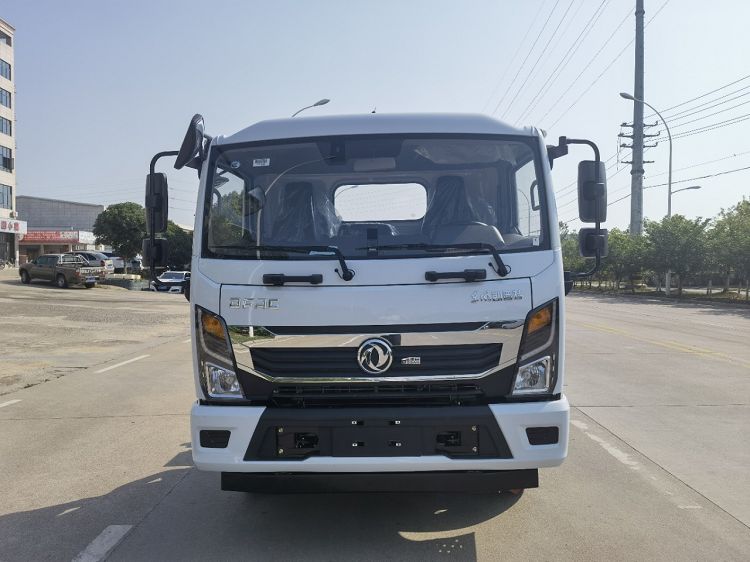

20260805103735001
20260805103731001



Our Advantages



  • Short wheelbase: A 3,390 mm chassis helps the tanker turn and position in crowded industrial or rural locations.
  • Low-speed pulling ability: The 180 hp engine, eight ratios and 5.286 final drive support climbing and controlled site movement.
  • High payload efficiency: The published 4,770 kg curb mass leaves a 6,935 kg rated payload within the 11,900 kg gross mass.
  • Selectable dispensing: Buyers can retain bulk transfer only or add metered dispensing for mobile refuelling work.

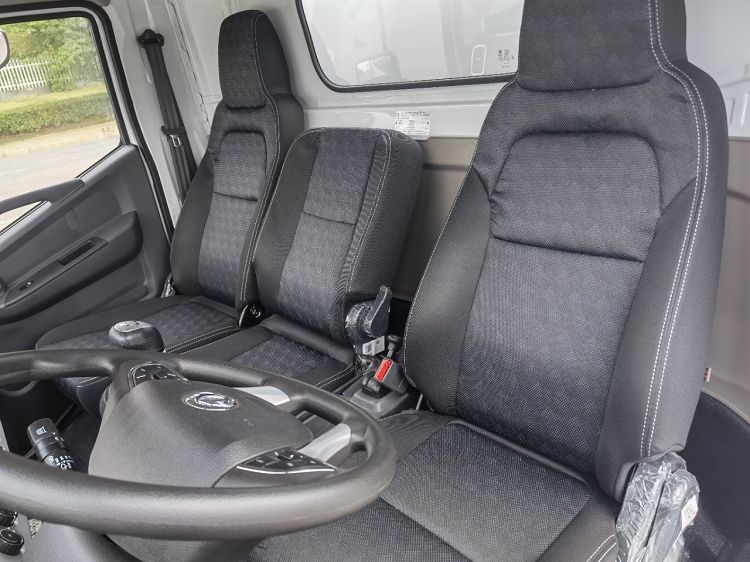

20260805103738001

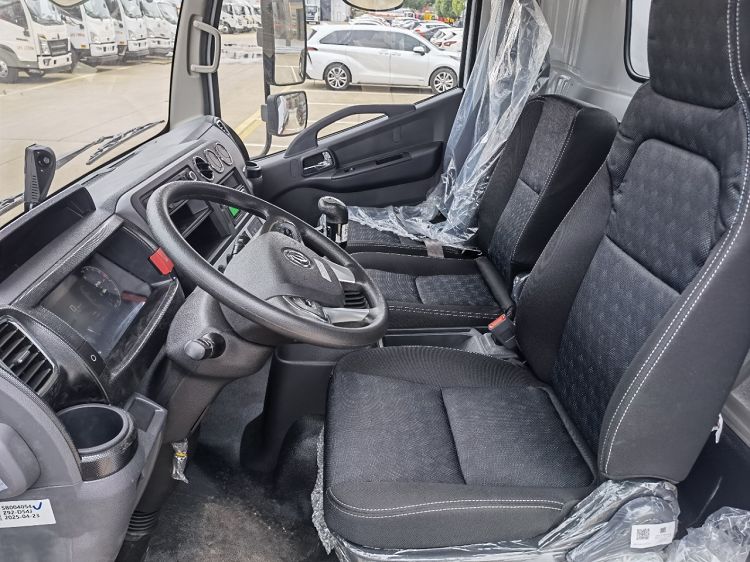

20260805103741001

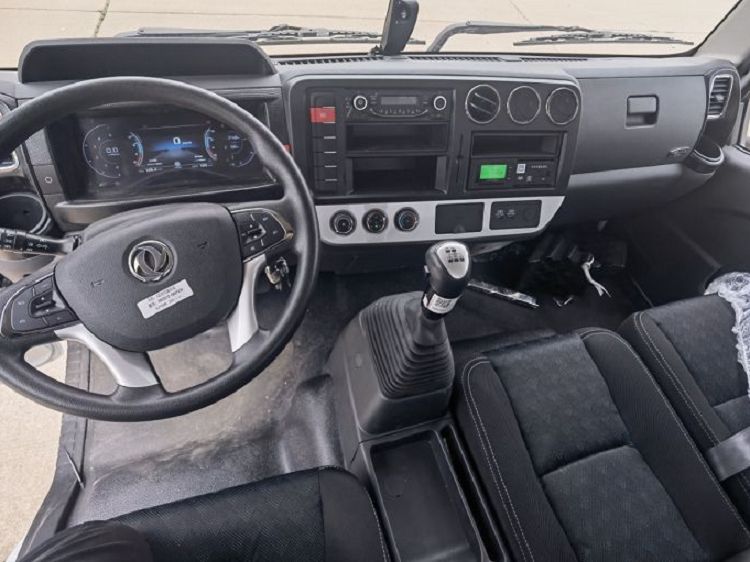

20260805103744001001

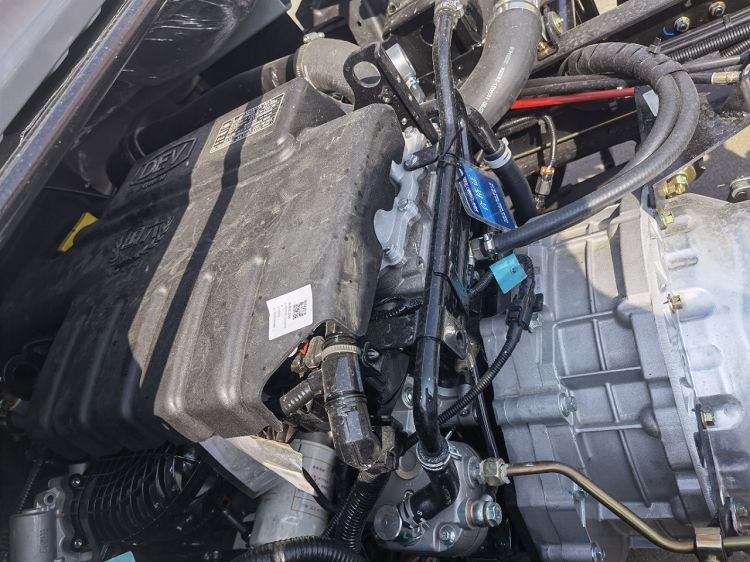

20260805103747001

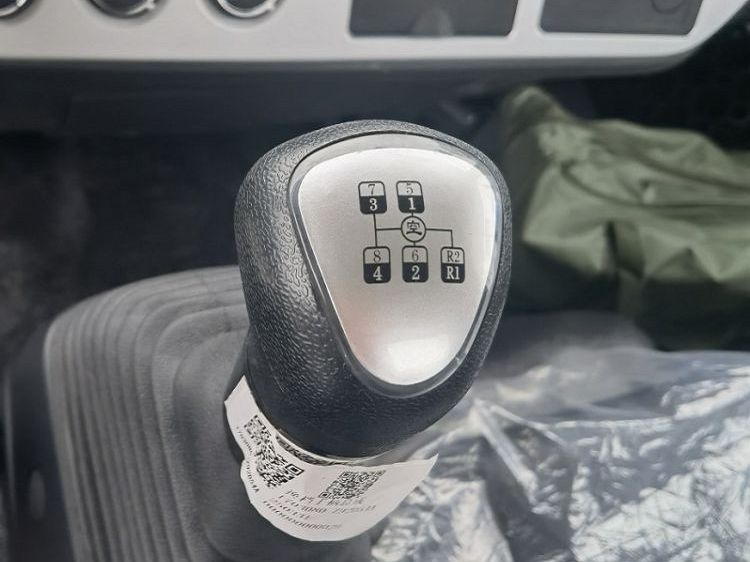

20260805103755001001

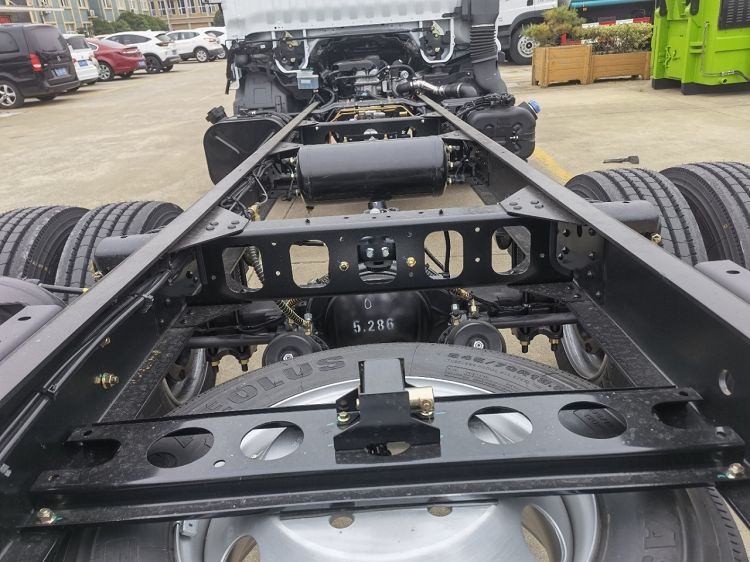

20260805103800001



FAQ



Q: Why choose the Dongfeng 10.4 m³ Fuel Delivery Truck for constrained sites?

A: Its 3,390 mm wheelbase gives it a shorter footprint than many tankers of similar nominal volume.

Q: Is the truck supplied with a dispenser?

A: A dispenser is optional. The base tank configuration already includes the pump and Euro-style loading system.

Q: What fuels are covered by the source configuration?

A: The source identifies both diesel and gasoline, subject to final material, compartment and approval confirmation.

Q: What is the published effective tank volume?

A: The total capacity is 10.4 m3 and the published effective volume is 9.9 m3.

Q: What should be specified for export?

A: Provide destination, steering side, emission expectation, fuel type, coupling standard and metering requirement for a configuration review.





Product Parameters



Specification

Reference Value

Vehicle model

ZLC5127GJYEQ6

Chassis model

EQ1127SJ8EDC

Tank volume

10.4 m3 total / 9.9 m3 effective

Permitted media

Gasoline or diesel; maximum medium density 700 kg/m3

Gross vehicle mass

11,900 kg

Rated payload

6,935 kg

Curb mass

4,770 kg

Overall dimensions

6,530 x 2,350 x 2,825 mm (listed configuration)

Tank dimensions

4,500 x 2,100 x 1,430 mm

Wheelbase

3,390 mm

Engine

D25TCIF180A Yunnei, 129 kW / 180 hp

Transmission

Eight-speed synchromesh

Tyres

245/70R19.5 radial

Maximum speed

80 km/h
