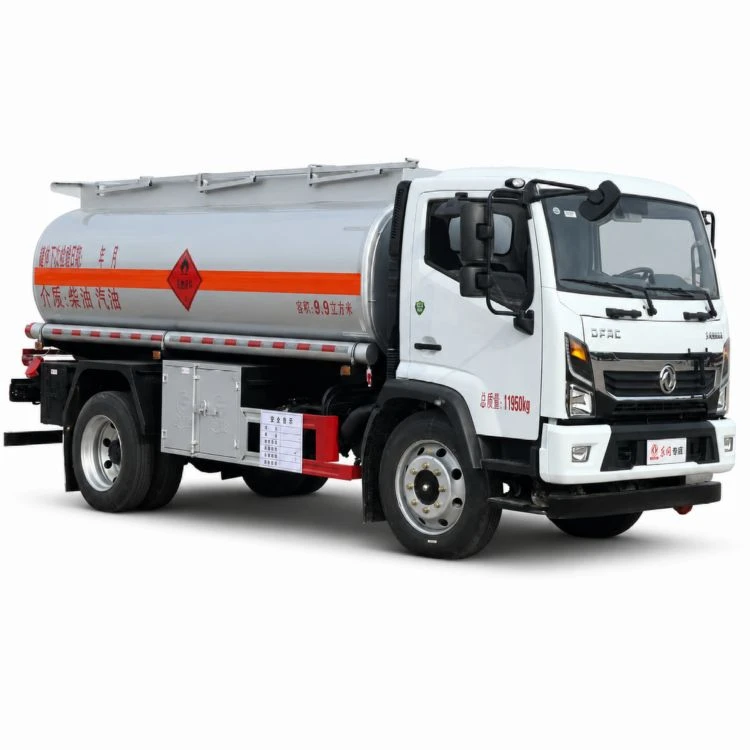

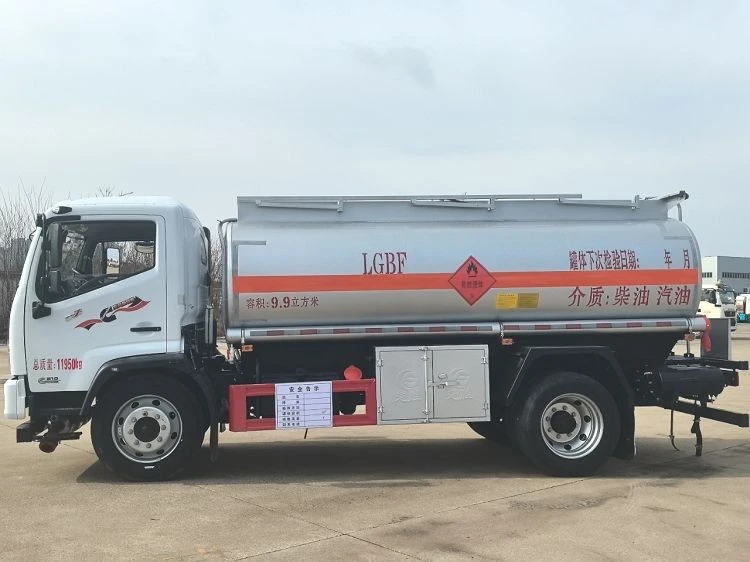

Dongfeng 11 M³ Oil And Fuel Tanker Truck

Dongfeng 11 M³ Oil And Fuel Tanker Truck

Details
The Dongfeng 11 m³ Oil and Fuel Tanker Truck carries one baffled carbon-steel compartment with pump-in/pump-out capability. Bottom loading, vapour recovery, overfill alarm, static controls and emergency shut-off are combined with a dispenser, long reel, hoses, ladder and folding guardrail.
Category
Fuel Tanker Truck
Share to
Send Inquiry
Description
Technical Parameters

Hubei Ruitu Technology Co., Ltd. is one of the leading manufacturers and suppliers of dongfeng 11 m³ oil and fuel tanker truck in China. If you're going to wholesale the newest dongfeng 11 m³ oil and fuel tanker truck made in China, welcome to get quotation from our factory. All customized products and OEM products are with high quality and competitive price.



The Dongfeng 11 m³ Oil and Fuel Tanker Truck combines a compact 3,800 mm wheelbase with a high-output 3.0 L engine for demanding fuel-delivery routes. An eight-speed Fast transmission, 7.5 t rear axle and double-layer chassis frame provide useful control on gradients and rough access roads. The carbon-steel tank is built as one compartment and equipped with a transfer pump, emergency bottom valve, Euro-style manhole and complete lower-loading system. A high-flow tax-control dispenser, 15 m automatic reel and nozzle are included in the described package. The result is a mobile refuelling platform suited to construction fleets, mines and equipment operators that need strong driveline performance in a short chassis.

20260805104150001
20260805104132002
20260805104143001001
20260805104146001001



Our Advantages



  • High power in a short chassis: The 210 hp engine provides extra reserve on gradients without extending the wheelbase.
  • Eight-speed control: Close gear selection helps the driver manage site speeds and loaded climbing.
  • Complete mobile-refuelling kit: The dispenser, reel and nozzle are already integrated with the transfer pump.
  • Full lower-loading circuit: Bottom discharge, vapour recovery, static connection and overfill warning are included.



FAQ



Q: Who benefits from the Dongfeng 11 m³ Oil and Fuel Tanker Truck?

A: It is particularly useful for mines, construction sites and fleets that combine steep access roads with direct machine refuelling.

Q: Is the 210 hp engine paired with an automatic gearbox?

A: No. The source specifies a Fast 8JS75T eight-speed manual transmission with synchronisers.

Q: Does the truck include a dispenser?

A: Yes. The described build includes a high-flow tax-control dispenser, a 15 m rewind reel and a nozzle.

Q: Can it load through the lower connection?

A: Yes. The package includes bottom loading and unloading, vapour recovery, static connection and overfill monitoring.

Q: What details still need order confirmation?

A: Confirm fuel grade, exact homologated vehicle model, tank dimensions, connection standard, meter interface and destination requirements.





Product Parameters



Specification

Reference Value

Recommended chassis

EQ1125SJ8CDCWXP

Nominal tank volume

10.2 m3

Permitted product

Gasoline or diesel configuration

Tank material

Carbon steel

Compartment

Single compartment with internal baffles

Wheelbase

3,800 mm

Engine

Dongfeng Cummins D3.0, 210 hp

Transmission

Fast 8JS75T eight-speed synchromesh

Rear axle

7.5 t, ratio 5.286

Tyres

9R22.5

Chassis frame

215 mm double-layer straight frame

Fuel tank

150 L chassis fuel tank

Dispensing equipment

High-flow tax-control dispenser; 15 m automatic reel and nozzle
