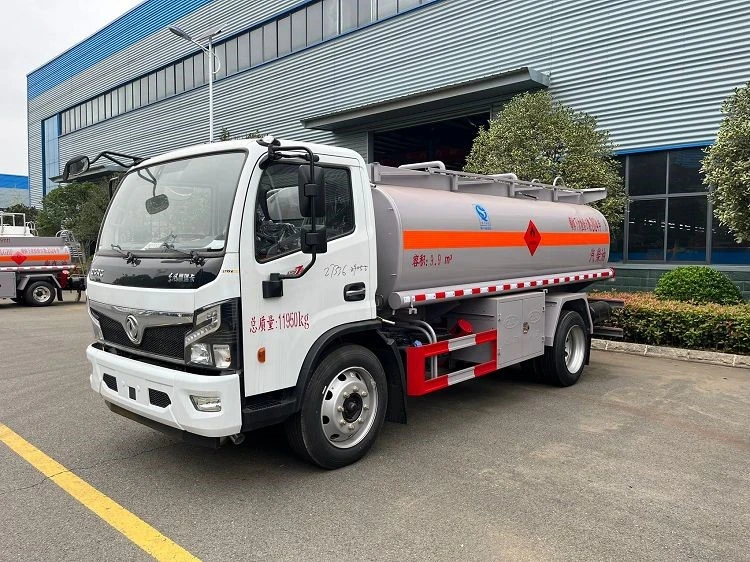

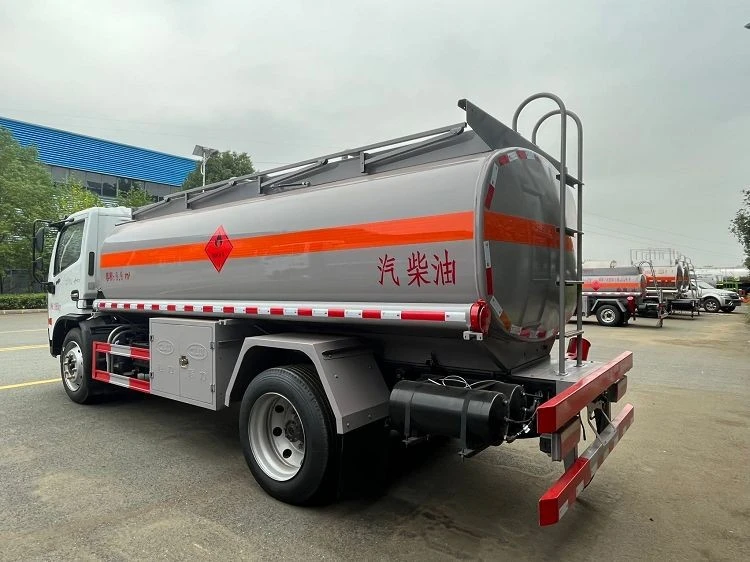

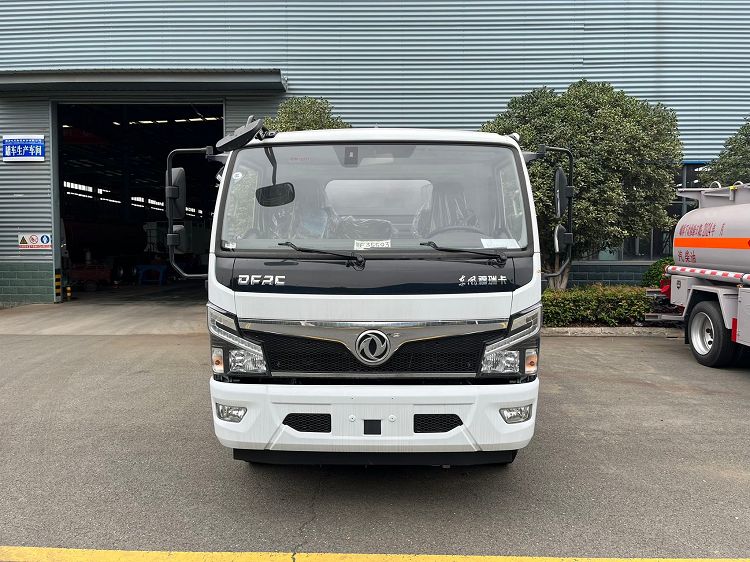

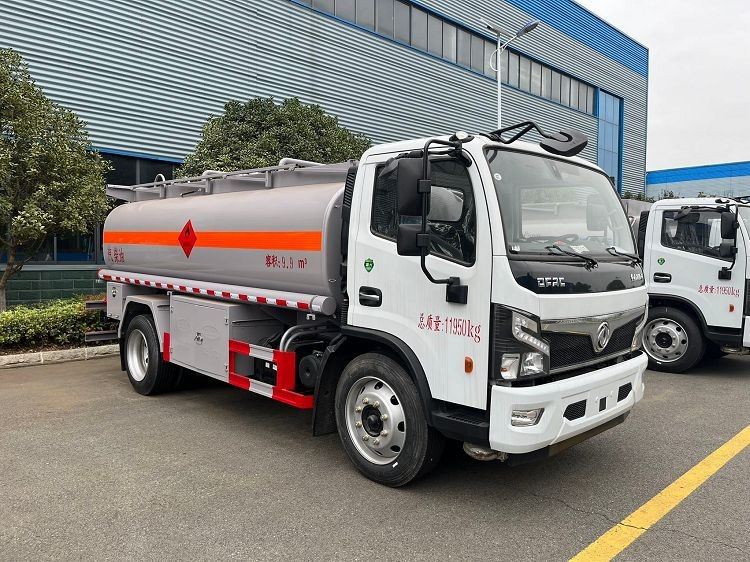

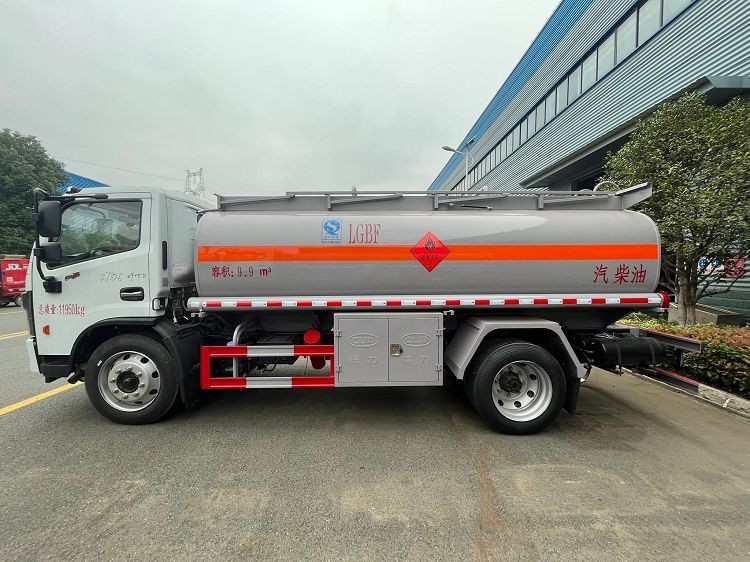

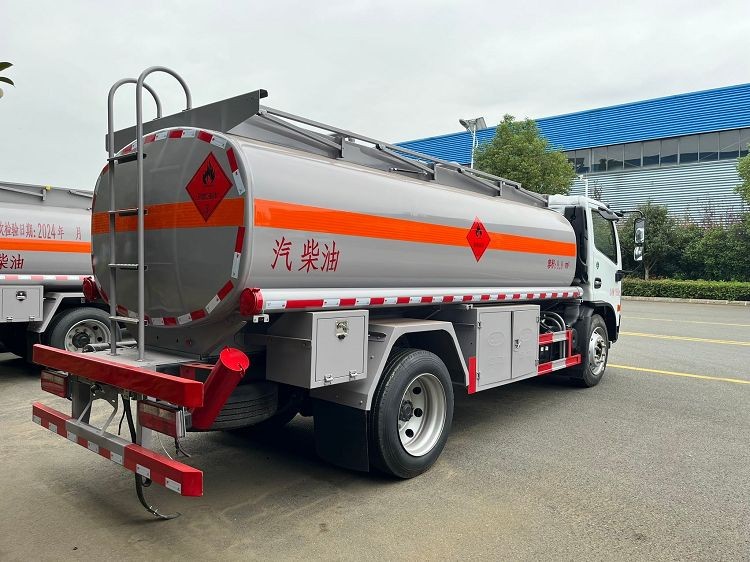

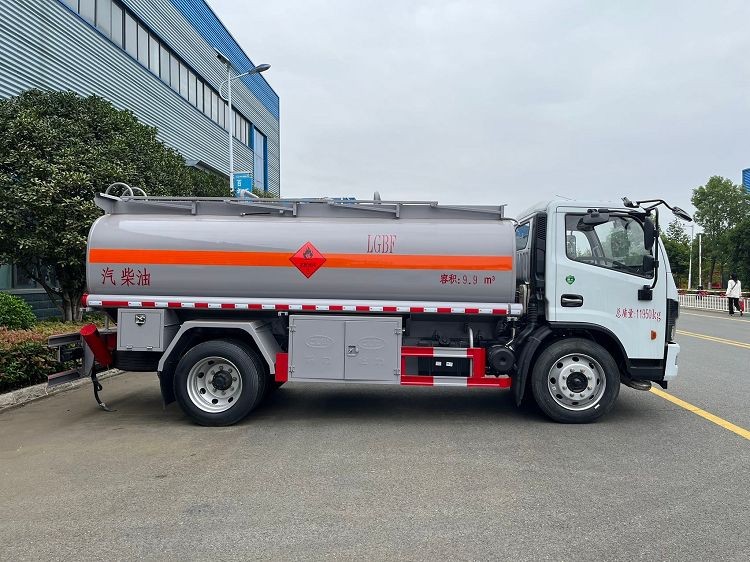

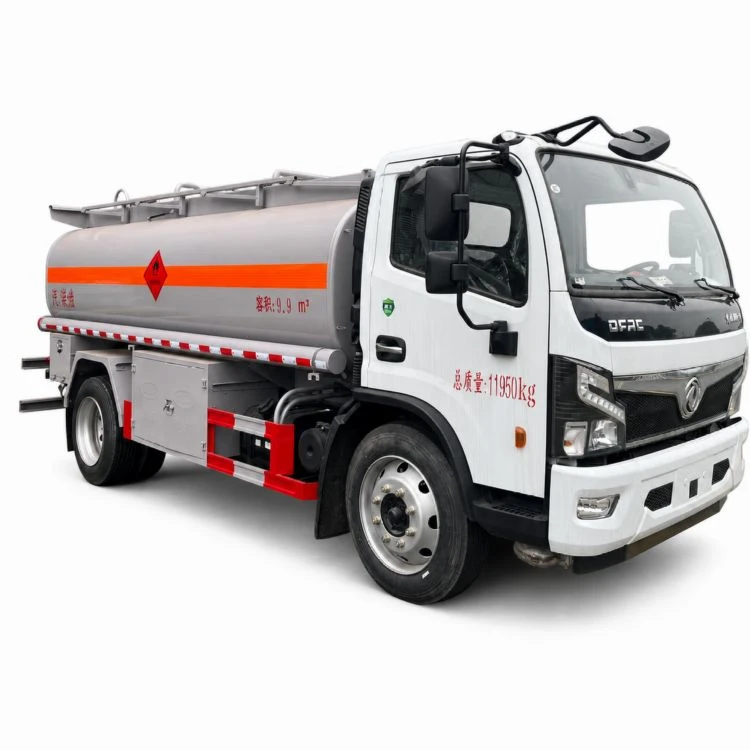

The Dongfeng 12m³oil tanker Truck is a two-axle mobile refuelling platform built around a 170 hp Yunnei powertrain and an eight-speed Fast gearbox. The 12 m3 Q235B tank has one compartment, a 76/40 oil pump and a high-flow dispensing package with a 15 m heavy-duty reel. Euro-style loading hardware, a bottom valve with voice warning and an anti-overfill arrangement support controlled loading and discharge. Its 3,800 mm wheelbase and single-row cab make the vehicle suitable for commercial depots, contracting fleets and remote equipment support where a compact fuel truck must still provide metered delivery.
Our Advantages
- Mobile metering: The dispenser and long reel allow direct refuelling of equipment at a controlled service point.
- Robust tank body: Specified Q235B plate thicknesses are matched to a baffled single-compartment construction.
- Warning at the bottom valve: A voice alert assists the operator when managing the emergency shut-off device.
- Compact heavy-duty gearing: The 170 hp engine and eight ratios provide useful low-speed control with road-going flexibility.
FAQ
Product Parameters
|
Specification |
Reference Value |
|
Vehicle model |
CL5124GJY6BWG |
|
Tank volume |
12 m3 total / 9.43 m3 effective |
|
Tank material |
Q235B carbon steel |
|
Tank thickness |
Shell 4.2 mm; heads 4.5 mm; baffles 4.2 mm |
|
Gross vehicle mass |
11,950 kg |
|
Rated payload |
6,605 or 6,670 kg |
|
Curb mass |
5,150 kg |
|
Overall dimensions |
6,840 or 6,950 x 2,200 x 2,800 mm |
|
Tank dimensions |
4,800 x 1,950 x 1,300 mm |
|
Wheelbase |
3,800 mm |
|
Engine |
Yunnei 170 hp configuration |
|
Transmission |
Fast eight-speed |
|
Dispenser |
High-flow unit with 15 m reel and nozzle |
|
Maximum speed |
80 km/h |
