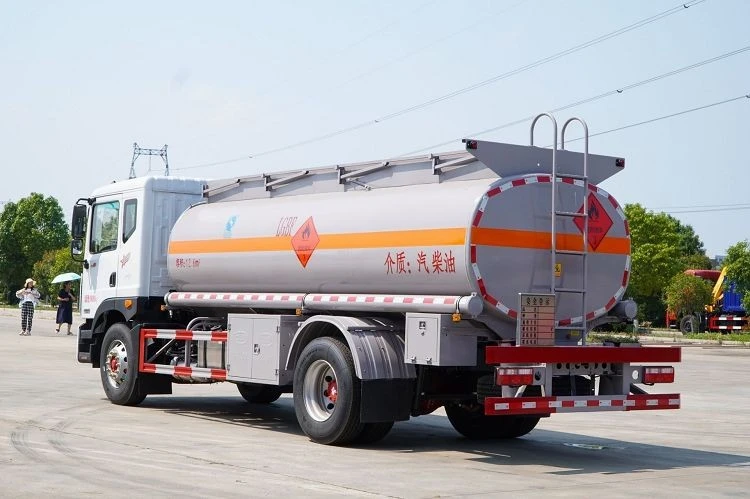

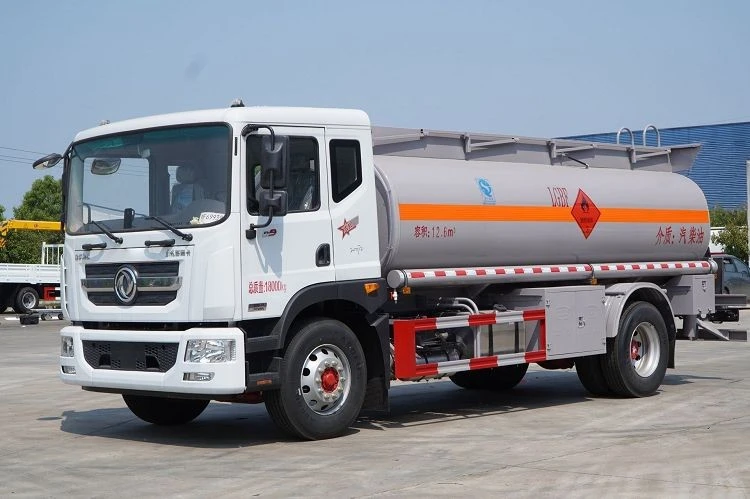

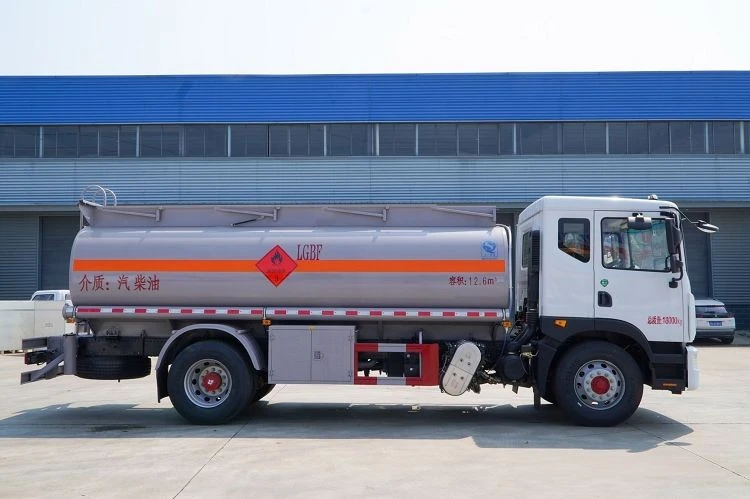

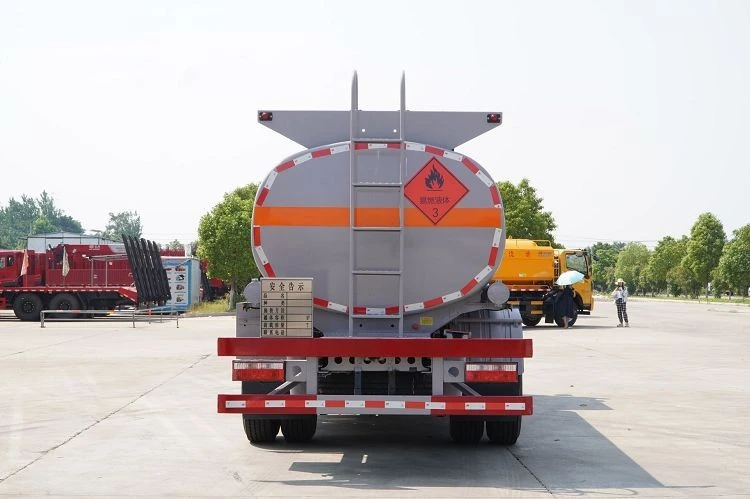

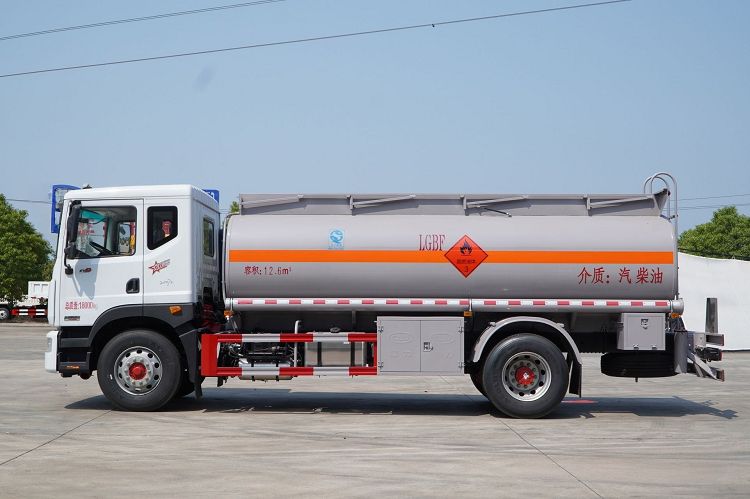

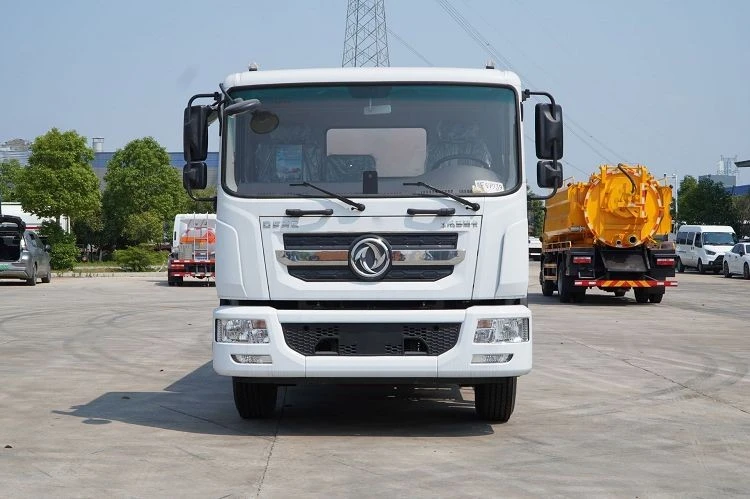

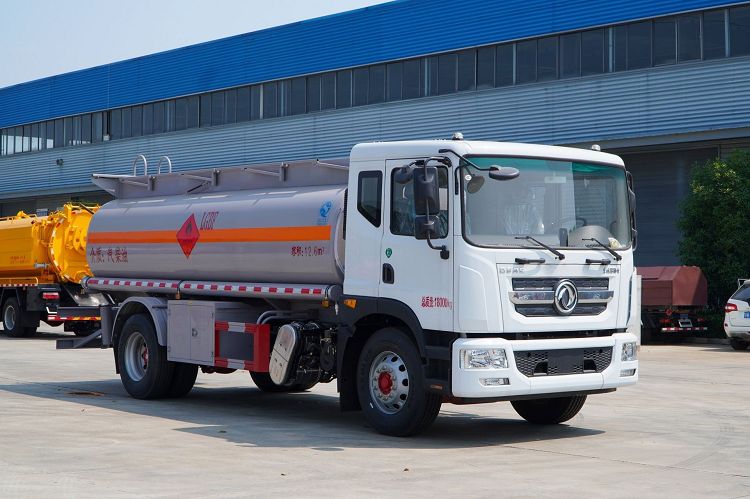

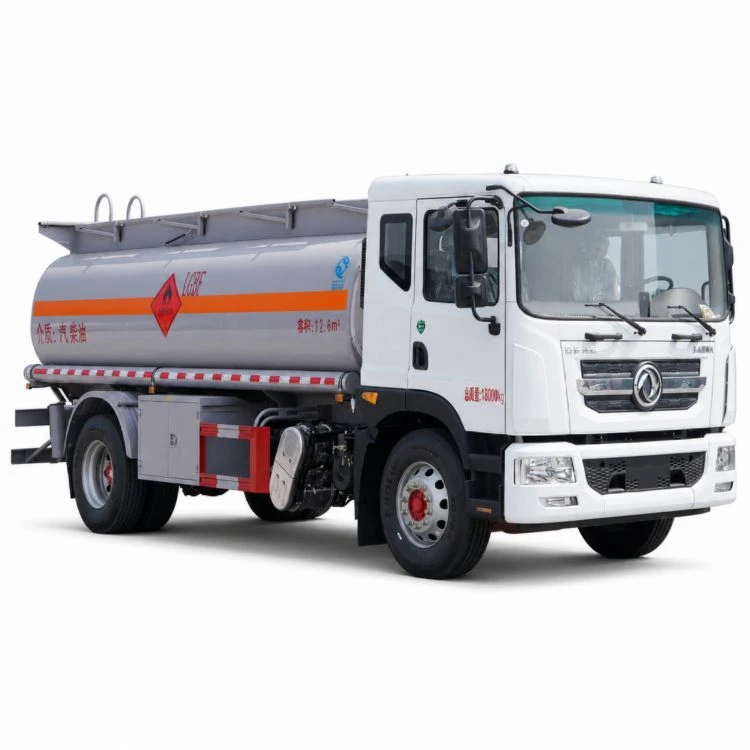

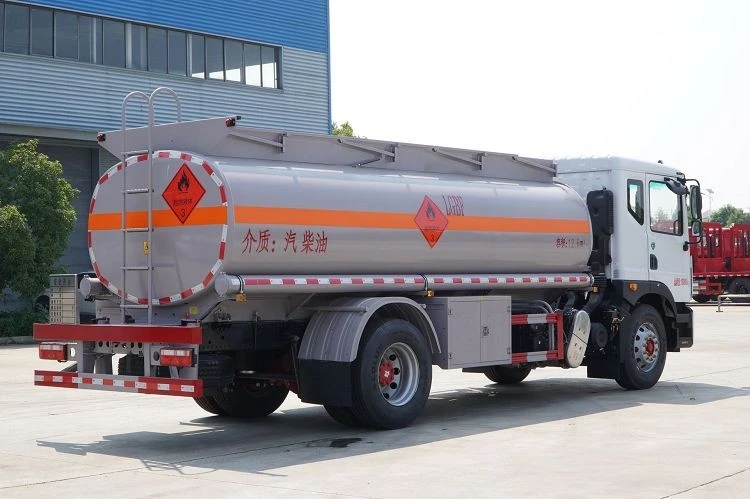

The Dongfeng 13 m³ Fuel Transport Tanker Truck is a medium-duty mobile fuelling platform with a 4,700 mm wheelbase and a 230 hp Cummins engine. The chassis combines an eight-speed Fast transmission, front disc brakes and rear air suspension for regional operation. Its Q235B tank is built as one compartment and connected to an 80/60 pump for loading and discharge. A Euro-style manhole, emergency bottom valve and optional English-interface high-flow dispenser support export-oriented fleet applications. The vehicle fits buyers who need more capacity than a light tanker while retaining a two-axle layout for commercial fuel delivery, equipment support and depot transfer.
Our Advantages
- Two-axle medium-duty package: The 18,000 kg chassis offers useful carrying capacity without moving to a multi-axle tanker.
- Cummins power: The selected 230 hp engine provides reserve output for regional routes and loaded operation.
- Air-suspended rear axle: The published configuration uses rear air suspension for the hazardous-goods chassis.
- Export-friendly metering option: An English-interface high-flow dispenser and long reel can be specified for direct delivery.
FAQ
Product Parameters
|
Specification |
Reference Value |
|
Vehicle model |
CL5180GJY6 |
|
Chassis model |
EQ1185L9CDFWXP |
|
Tank volume |
12.6 m3 total / 12.04 m3 effective |
|
Maximum medium density |
830 kg/m3 |
|
Gross vehicle mass |
18,000 kg |
|
Rated payload |
10,000 or 10,065 kg |
|
Curb mass |
7,805 kg |
|
Overall dimensions |
8,400 x 2,500 x 3,155 mm |
|
Tank dimensions |
5,700 x 2,000 x 1,400 mm |
|
Wheelbase |
4,700 mm |
|
Configured engine |
B6.2NS6B230 Cummins, 169 kW / 230 hp |
|
Transmission |
Fast eight-speed |
|
Tank material |
Q235B; 4.2 mm shell, 4.5 mm heads, 5 mm baffles |
|
Maximum speed |
80 km/h |
