Dongfeng 21.7 M³ Heavy-Duty Oil Tanker Truck

Dongfeng 21.7 M³ Heavy-Duty Oil Tanker Truck

Details
The uses a baffled carbon-steel tank with two top manholes and an 80/60 pump. Its bottom-loading package combines discharge, vapour return, overfill monitoring and static control, while the ladder, guardrail and tool box support daily checks.
Category
Fuel Tanker Truck
Share to
Send Inquiry
Description
Technical Parameters

Hubei Ruitu Technology Co., Ltd. is one of the leading manufacturers and suppliers of dongfeng 21.7 m³ heavy-duty oil tanker truck in China. If you're going to wholesale the newest dongfeng 21.7 m³ heavy-duty oil tanker truck made in China, welcome to get quotation from our factory. All customized products and OEM products are with high quality and competitive price.

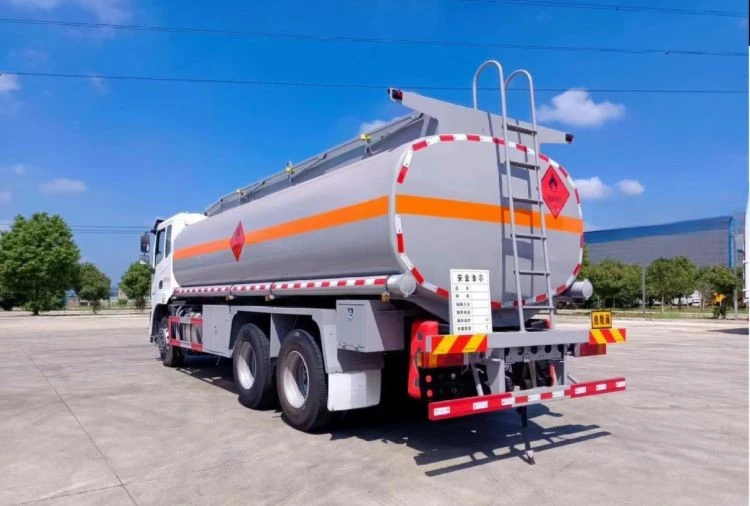

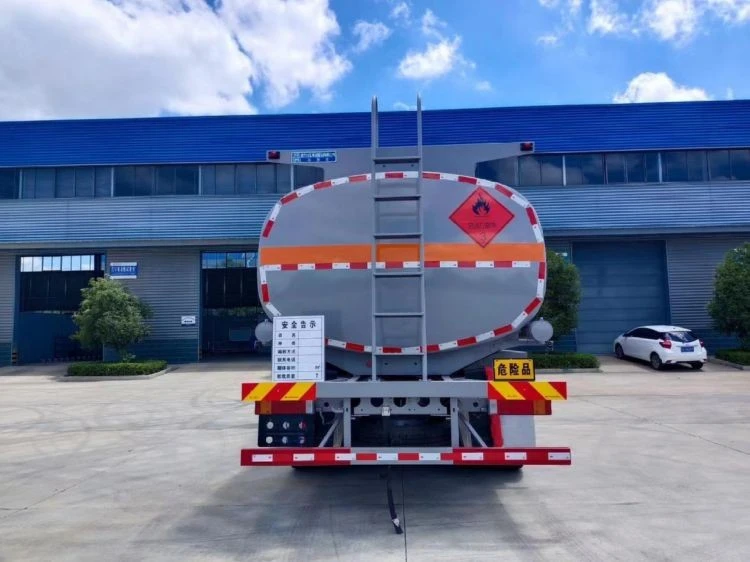

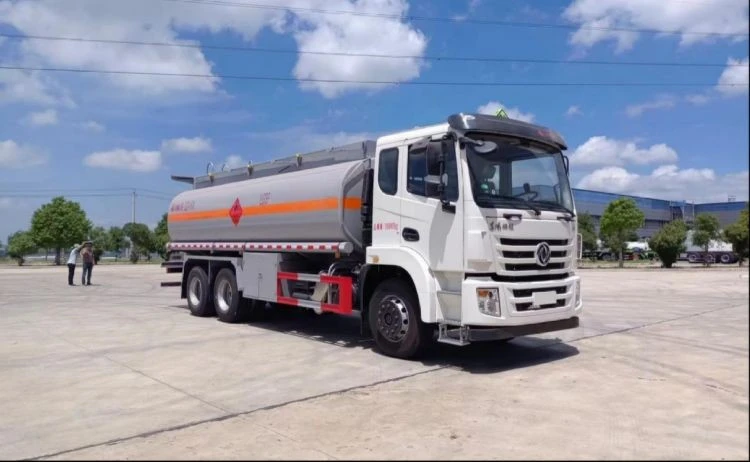

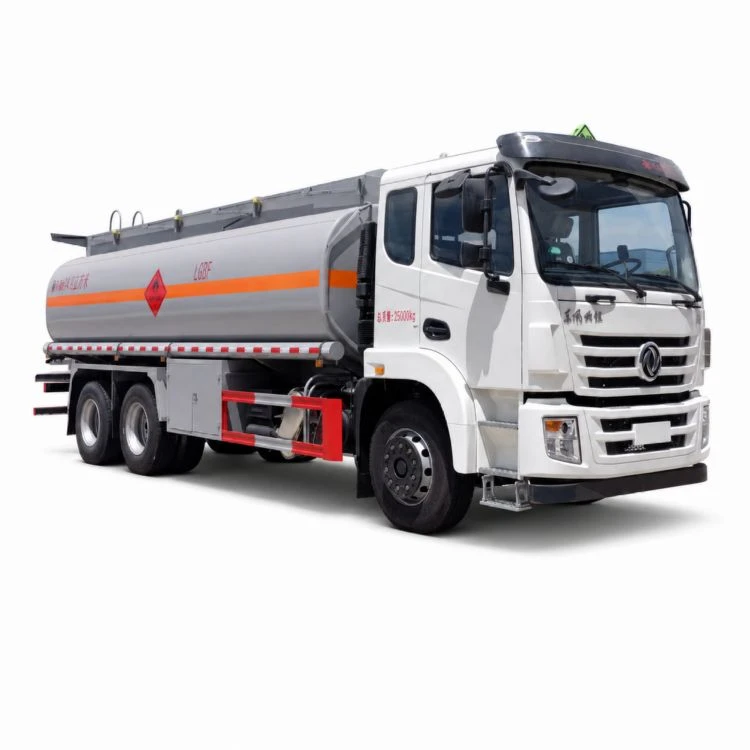

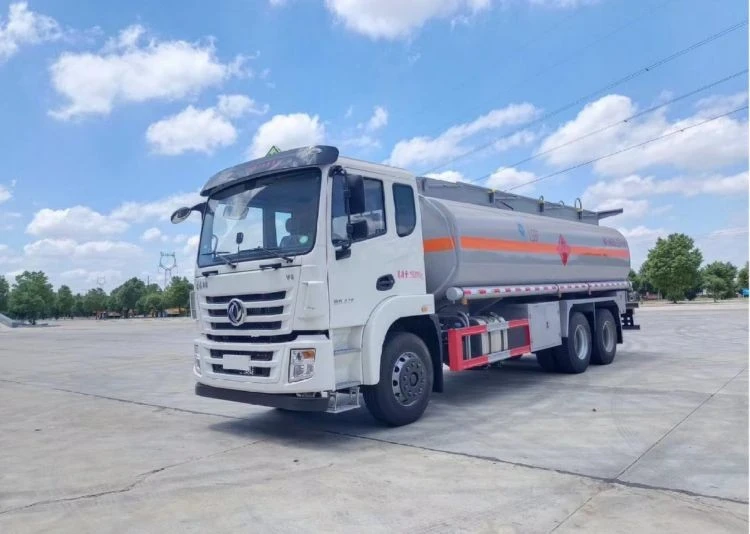

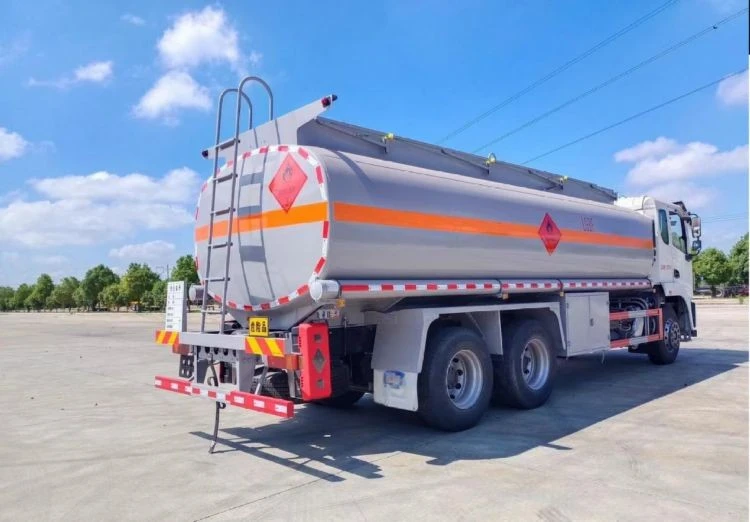

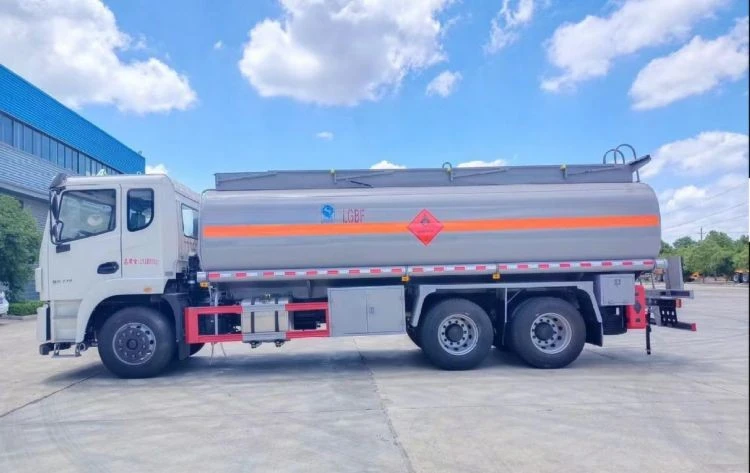

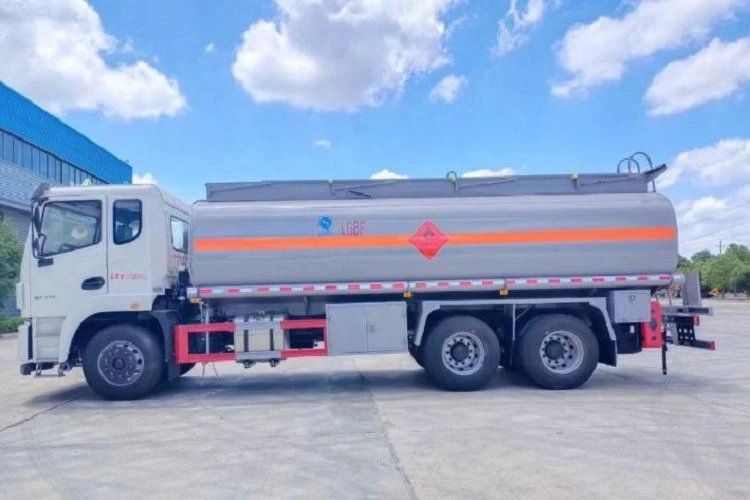

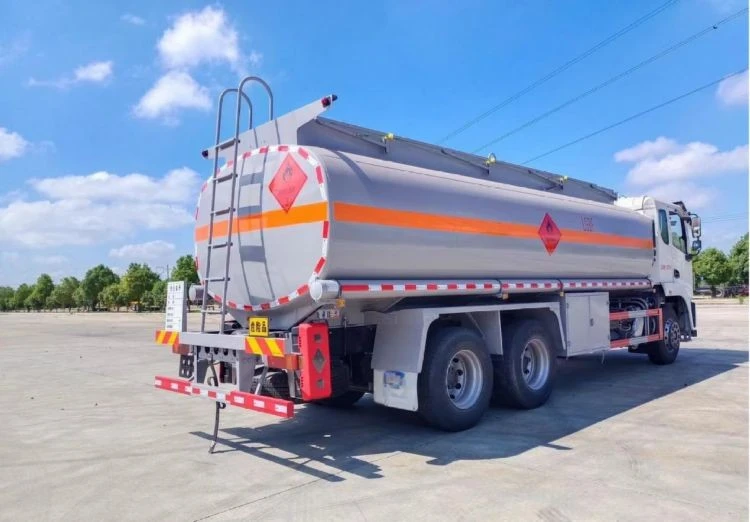

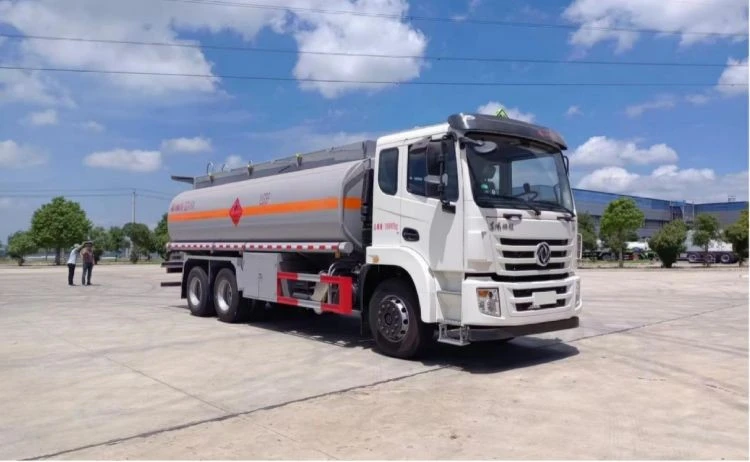

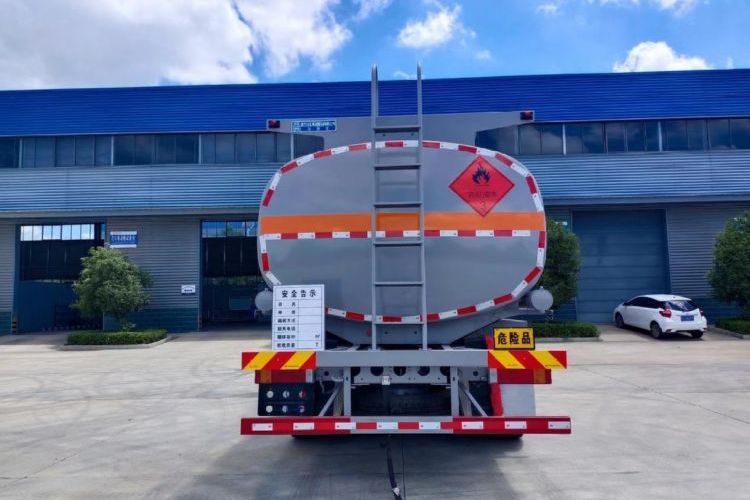

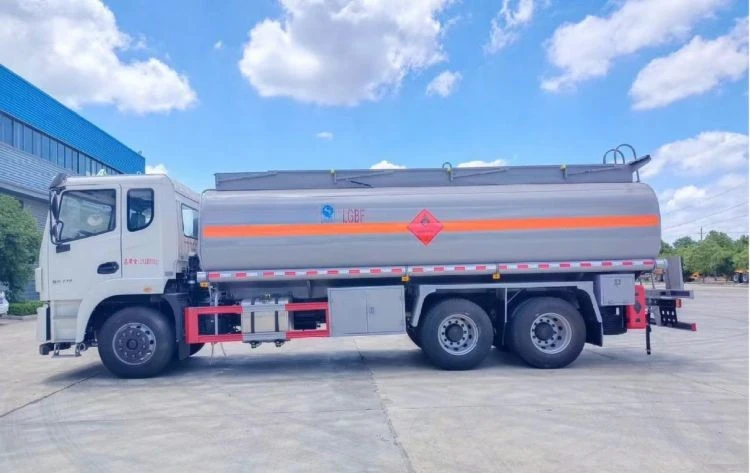

The Dongfeng 21.7 m³ Heavy-Duty Oil Tanker Truck is a three-axle distribution tanker for higher-volume fuel movement between depots, commercial users and regional delivery points. The specified chassis uses a 270 hp Yuchai engine, radial tyres and a rear air-suspension arrangement. A 21.7 m3 Q235 tank sits above a single-compartment transfer system with two Euro-style manholes, an intelligent emergency bottom valve and an 80/60 pump. Bottom discharge, vapour recovery, overfill sensing and static-control equipment are brought together in the loading package. This configuration offers buyers greater route capacity while retaining on-board pumped transfer for locations without fixed unloading equipment.

1001
2001001
3002001
4001001
6001001



Our Advantages



  • Regional carrying capacity: The 21.7 m3 body reduces refill frequency on longer distribution runs.
  • Pumped unloading: An 80/60 pump supports delivery where gravity discharge is unsuitable or unavailable.
  • Air-suspended rear axle: The published chassis configuration uses rear air suspension for the hazardous-goods application.
  • Consolidated tank controls: Bottom discharge, vapour return, overfill sensing and static control are integrated in one package.



FAQ



Q: What delivery profile suits the Dongfeng 21.7 m³ Heavy-Duty Oil Tanker Truck?

A: It is aimed at regional bulk delivery between storage depots, commercial users and fleet operating bases.

Q: Can the truck unload through its own pump?

A: Yes. The source configuration includes an 80/60 pump for both suction and discharge.

Q: Is the listed tank one compartment?

A: Yes. The reference build is single-compartment with two top manholes.

Q: What is the effective published volume?

A: The published data lists 20.71 m3 effective volume from a 21.7 m3 total tank capacity.

Q: Which details can be adapted before manufacture?

A: Compartment planning, couplings, hose arrangement, pump controls and external finish can be reviewed against the required approval.





Product Parameters



Specification

Reference Value

Vehicle model

CL5260GYY6BWG

Chassis model

EQ1260GSZ6DJ

Tank volume

21.7 m3 total / 20.71 m3 effective

Permitted medium density

Up to 700 kg/m3

Gross vehicle mass

26,000 kg

Rated payload

14,500 or 14,565 kg

Curb mass

11,305 kg

Overall dimensions

9,600 x 2,550 x 3,480 or 3,500 mm

Tank dimensions

6,800 x 2,450 x 1,600 mm

Configured engine

YCS06270-60 Yuchai, 199 kW / 270 hp

Tank material

Q235 carbon steel; 5 mm shell, 5.5 mm heads, 5 mm baffles

Pump

80/60 pump, pump-in and pump-out

Axles / tyres

Three axles / 295/80 radial tyres

Maximum speed

80 km/h
