Hubei Ruitu Technology Co., Ltd. is one of the leading manufacturers and suppliers of howo 15m³ oil tanker truck in China. If you're going to wholesale the newest howo 15m³ oil tanker truck made in China, welcome to get quotation from our factory. All customized products and OEM products are with high quality and competitive price.

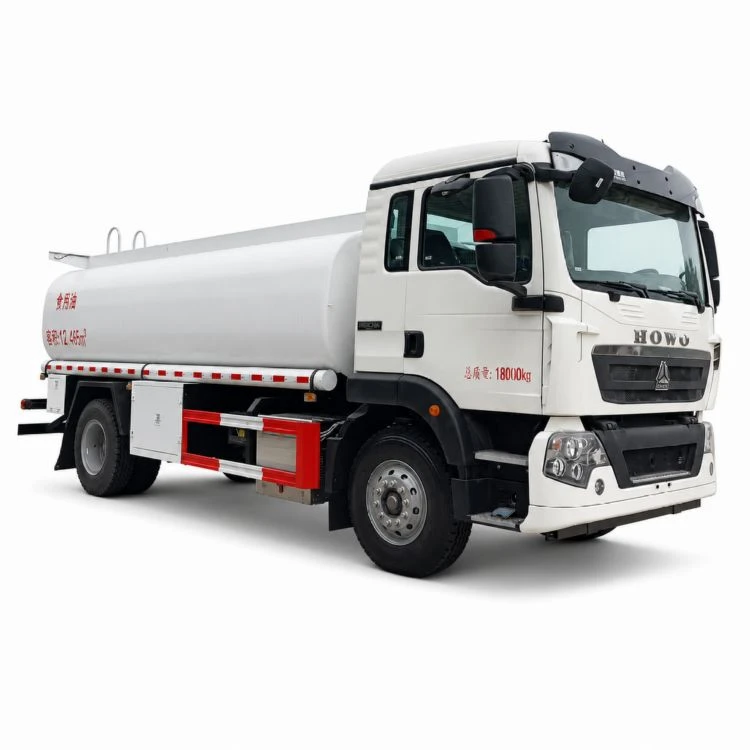

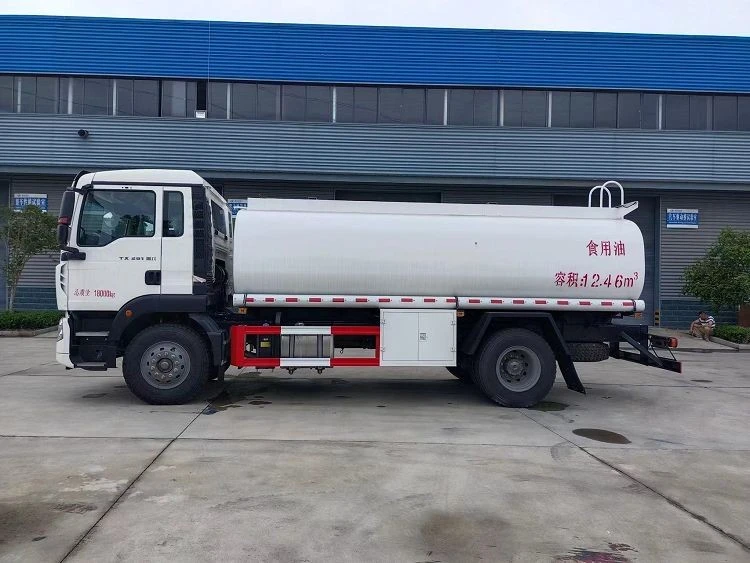

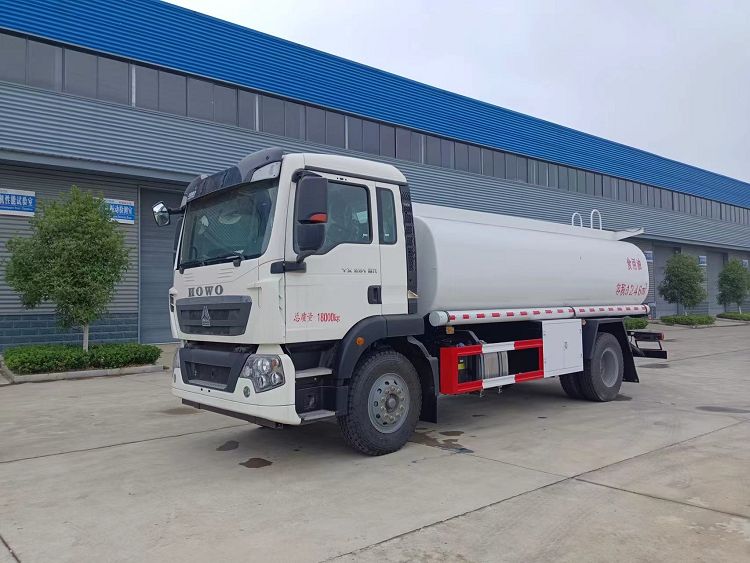

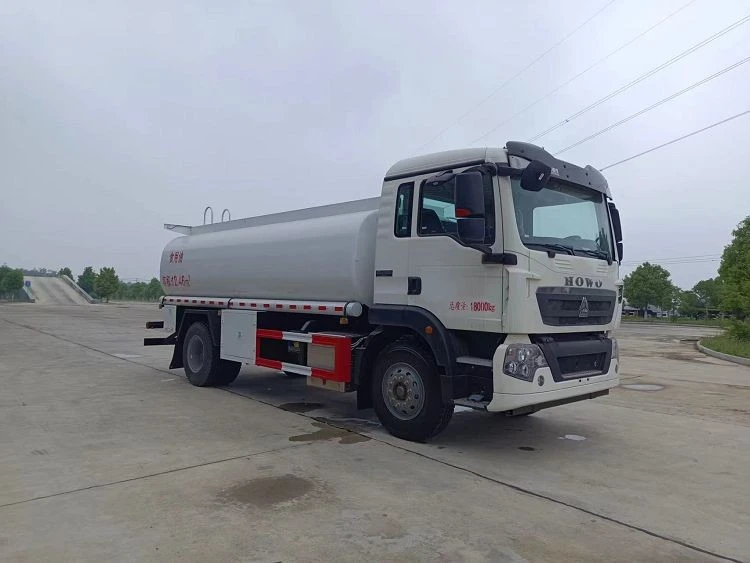

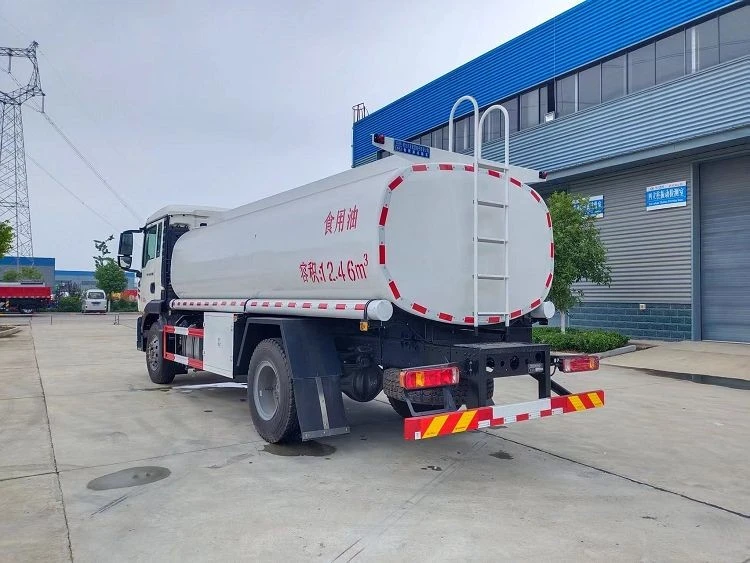

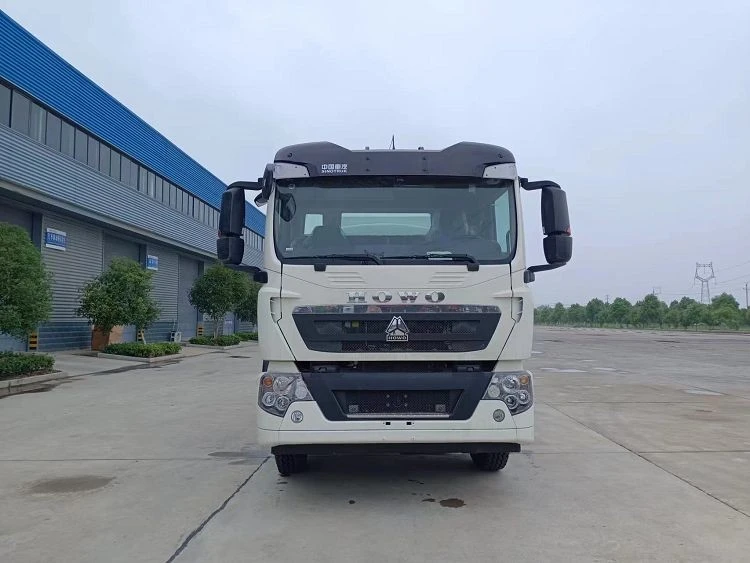

The HOWO 15m³Oil Tanker Truck is designed for bulk movement of edible oil using a dedicated tank and transfer circuit. The described production body is offered around a 15 m3 configuration, while the matched CL5180GSYZ6 published model lists 12.46 m3 total capacity and 11.87 m3 effective volume. The TX5 chassis uses a 250 hp MC07 engine, eight-speed transmission and 4,500 mm wheelbase. A standard carbon-steel body is described, with 304 stainless steel or aluminum alloy available as material options. One top opening and an 80/60 pump provide a straightforward loading and discharge arrangement for processors, storage operators and commercial oil distributors.





Our Advantages
- Dedicated edible-oil role: The matched published model identifies edible oil as its transport medium.
- Material choice: Carbon steel, 304 stainless steel and aluminum options allow the body to be matched to cleaning and cargo requirements.
- Direct transfer: The 80/60 pump supports controlled loading and unloading without relying only on gravity.
- Heavy commercial chassis: The TX5 platform provides a 250 hp engine and 18,000 kg gross-mass class for distribution work.
FAQ
Product Parameters
|
Specification |
Reference Value |
|
Vehicle model |
CL5180GSYZ6 |
|
Chassis model |
ZZ1187K501GF1 |
|
Configured body volume |
Approximately 15 m3 in the production description |
|
Published tank volume |
12.46 m3 total / 11.87 m3 effective |
|
Transport medium |
Edible oil |
|
Gross vehicle mass |
18,000 kg |
|
Rated payload |
9,500 or 9,565 kg |
|
Curb mass |
8,305 kg |
|
Overall dimensions |
8,230 x 2,500 x 3,200 mm |
|
Tank dimensions |
5,600 x 2,250 x 1,450 mm |
|
Wheelbase |
4,500 mm |
|
Engine |
MC07.25-60, 188 kW / 250 hp |
|
Tank material options |
Q235 carbon steel; optional 304 stainless steel or aluminum alloy |
|
Pump and pipework |
80/60 pump; 3-inch line and outlet |
