Hubei Ruitu Technology Co., Ltd. is one of the leading manufacturers and suppliers of 15m³ mobile garbage compressor in China. If you're going to wholesale the newest 15m³ mobile garbage compressor made in China, welcome to get quotation from our factory. All customized products and OEM products are with high quality and competitive price.

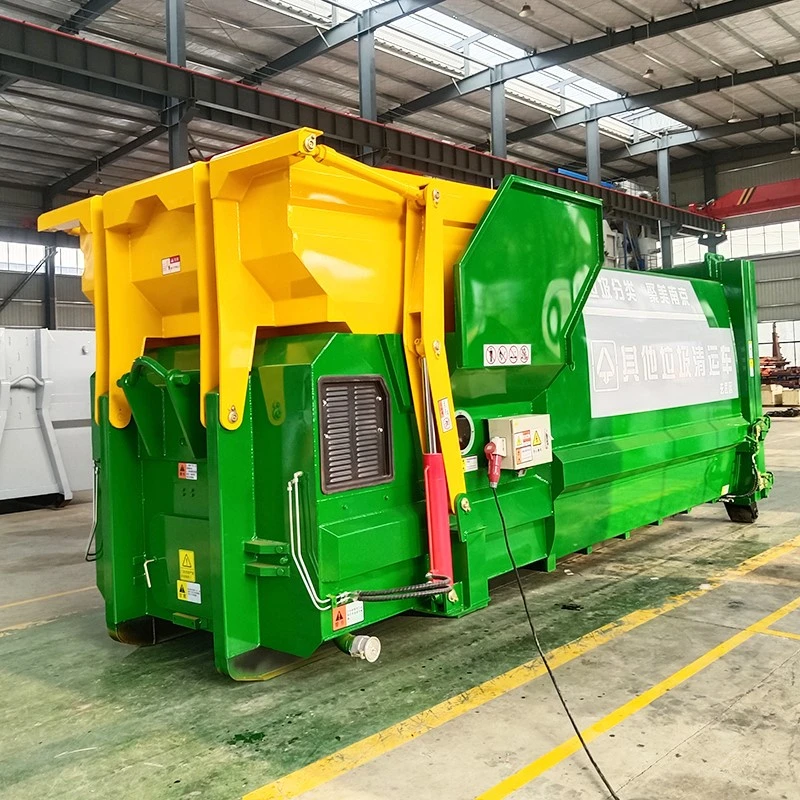

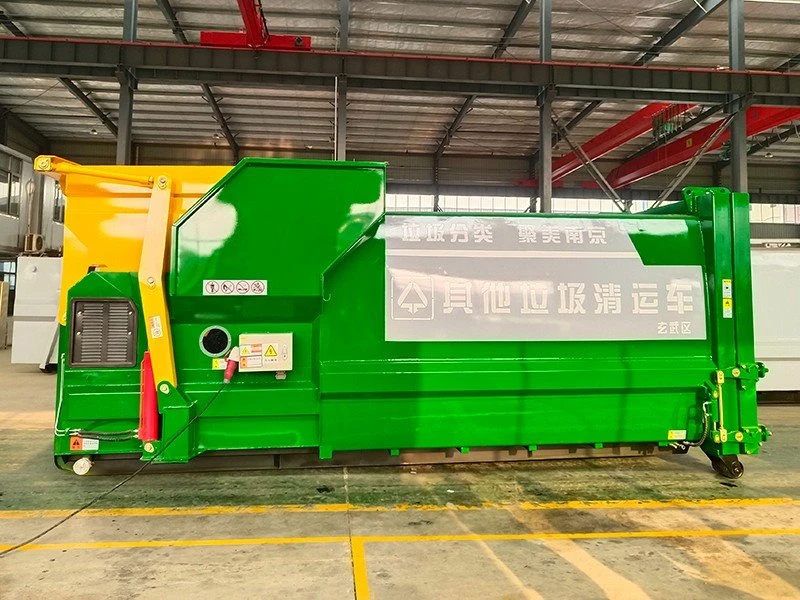

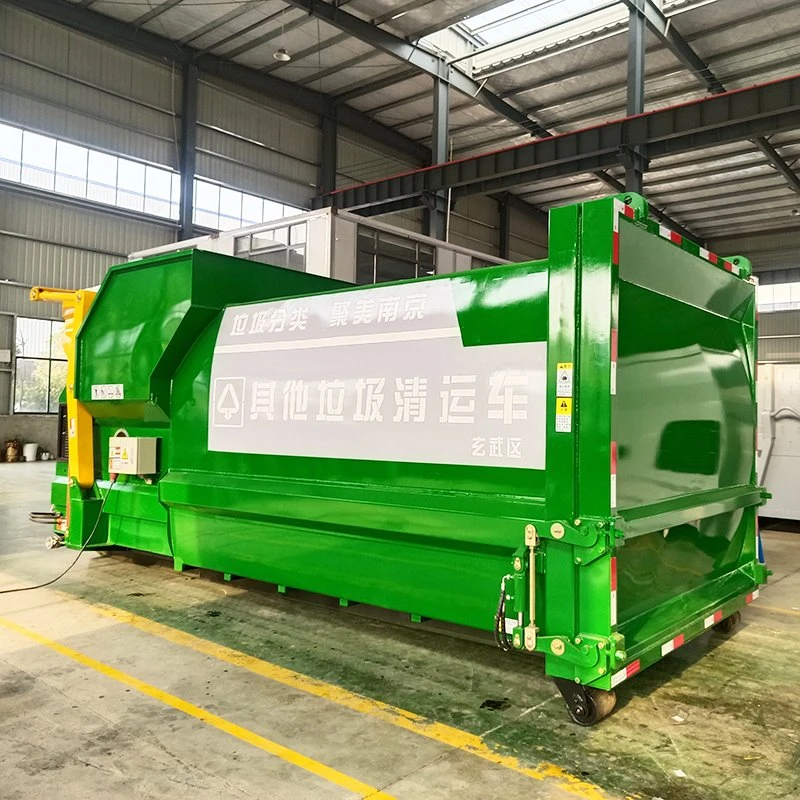

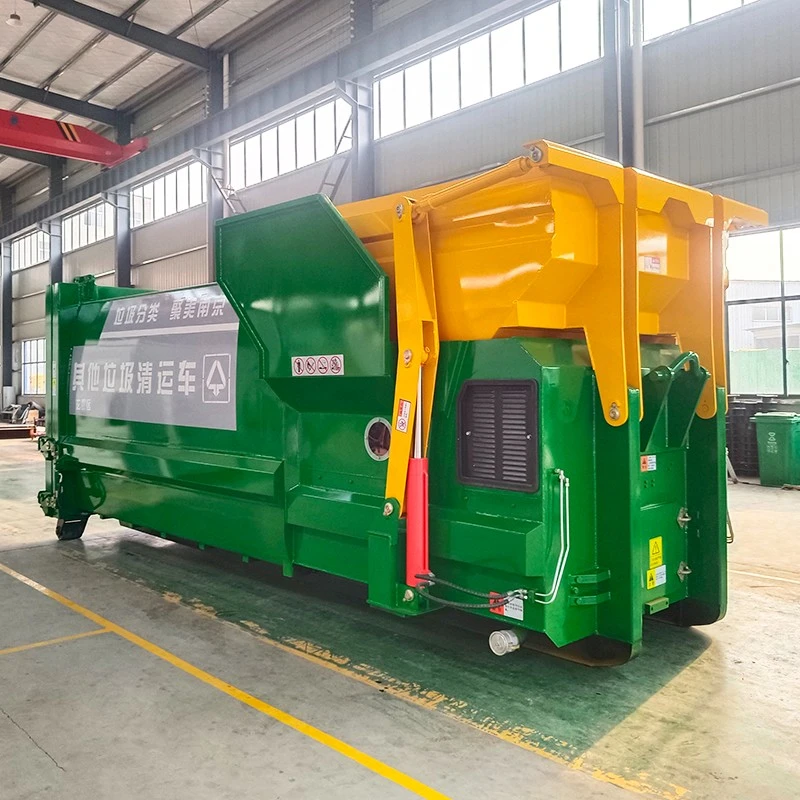

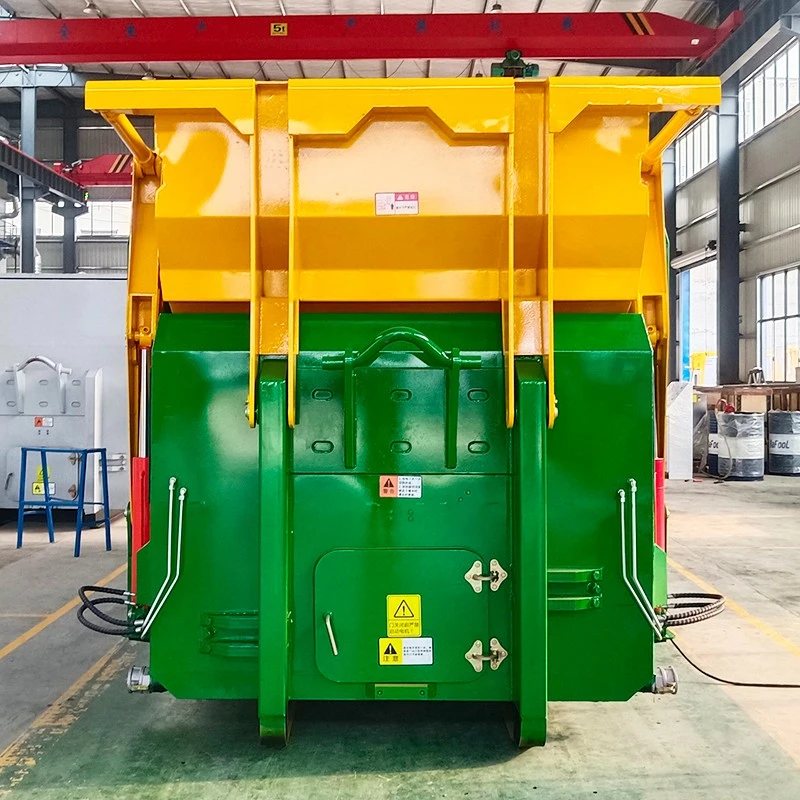

The 15m³ Mobile Garbage Compressor is built for municipal solid waste collection and transfer work that requires on-site compaction. It fits large residential communities, commercial complexes, industrial parks, and waste transfer stations, offering a flexible alternative where fixed compaction facilities are not required.
With a 15m³ compaction chamber and hydraulic compression system, the unit raises waste density, lowers transfer frequency, and improves operating efficiency. Its sealed structure helps control odor, loose waste, and leachate leakage, while the control system can support automatic or semi-automatic operation for easier use.
The compressor can work with hooklift trucks or other transfer vehicles for fast collection and centralized waste movement. Its modular structure supports convenient installation, transport, and maintenance, making it suitable for sanitation departments, property management companies, and industrial waste collection projects.
Our Advantages
1.The unit is powered by a high-performance motor and uses an efficient, energy-saving system layout designed for reliable operation.
2.PLC control allows the equipment to adjust cylinder thrust automatically according to waste compaction load, helping distribute refuse evenly and densely inside the container.

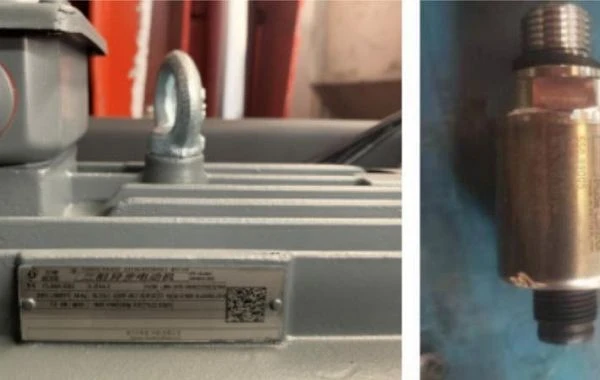

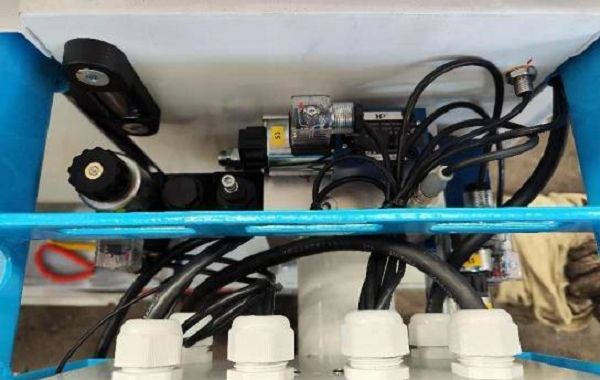

3.Core parts, including the motor, oil pump, pressure test fitting, circuit breaker, relay, and push buttons, are selected from well-known domestic and international brands. The electrical components meet CE safety requirements and use a waterproof plug-in design.
FAQ
Product Parameters
|
Item |
Unit |
Model & Parameter |
|
Product Model |
/ |
CLZNY15-A |
|
Overall Dimensions (L×W×H) |
mm |
5960×2500×2560 (±50) |
|
Theoretical Waste Processing Capacity |
t/h |
15 |
|
Motor Power |
kW |
7.5 |
|
System Max. Pressure |
MPa |
21 |
|
Max. Compression Force |
kN |
360 |
|
Max. Lifting Force of Feeding Mechanism |
t |
2 |
|
Waste Bin Volume |
m³ |
15 |
|
Compression Chamber Volume |
m³ |
4.5 |
|
Compaction Cavity Volume |
m³ |
1.7 |
|
Compaction Density |
t/m³ |
≥0.75 |
|
No-Load Compression Cycle Time |
S |
≤35 |
|
Tipper Cycle Time |
S |
≤30 |
|
Tipper Volume |
m³ |
≥3.5 |
|
Guide Rail Width |
mm |
1060 |
|
Hook Center Height |
mm |
1570 (0,+10) |
|
Power Supply |
/ |
380V/50Hz/10kW |
