Hubei Ruitu Technology Co., Ltd. is one of the leading manufacturers and suppliers of howo 28 m³ fuel tanker truck in China. If you're going to wholesale the newest howo 28 m³ fuel tanker truck made in China, welcome to get quotation from our factory. All customized products and OEM products are with high quality and competitive price.

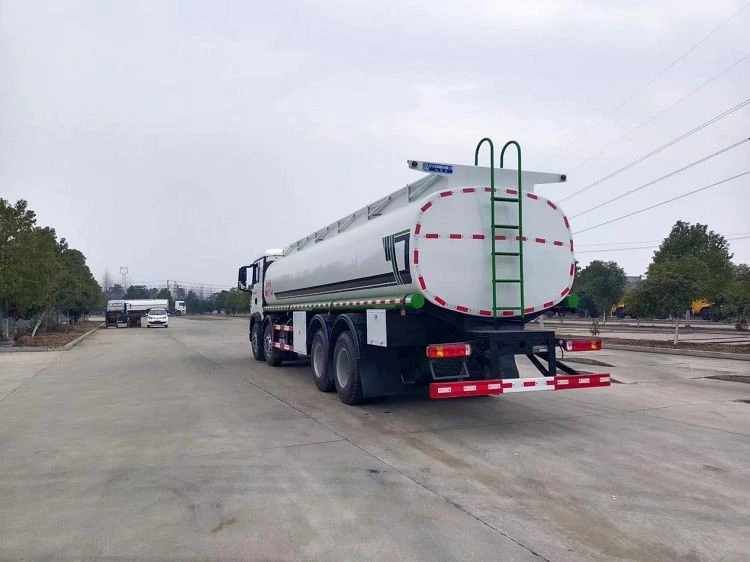

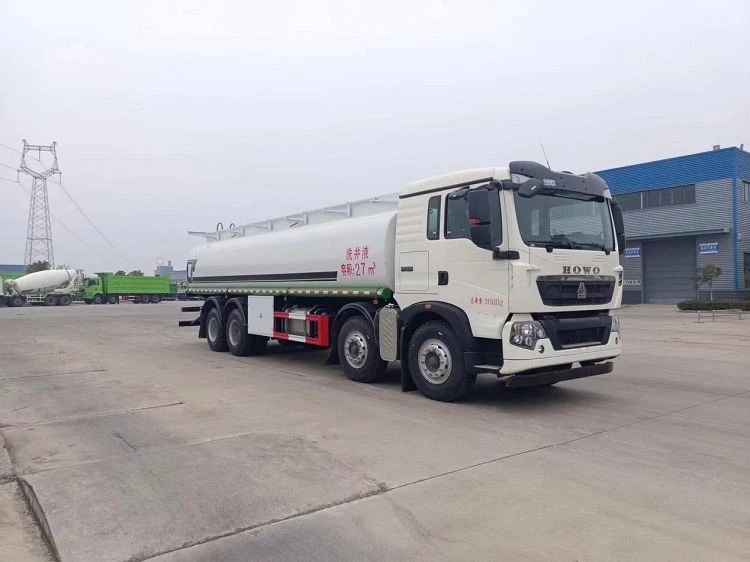

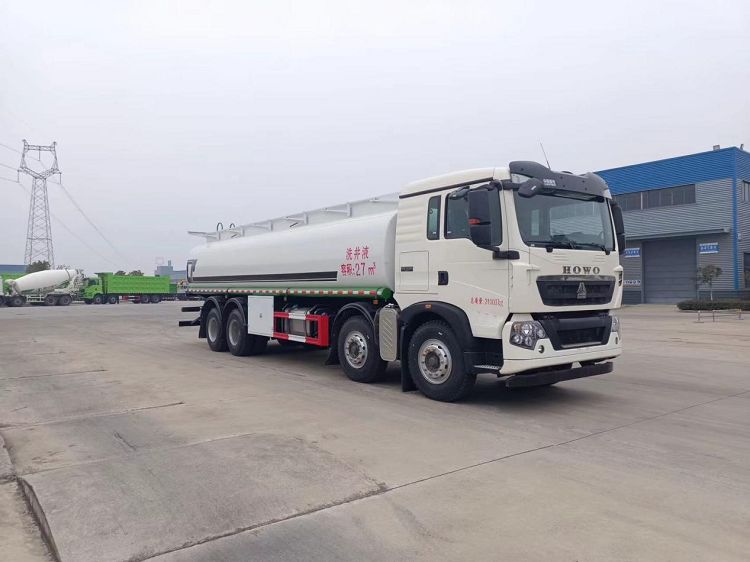

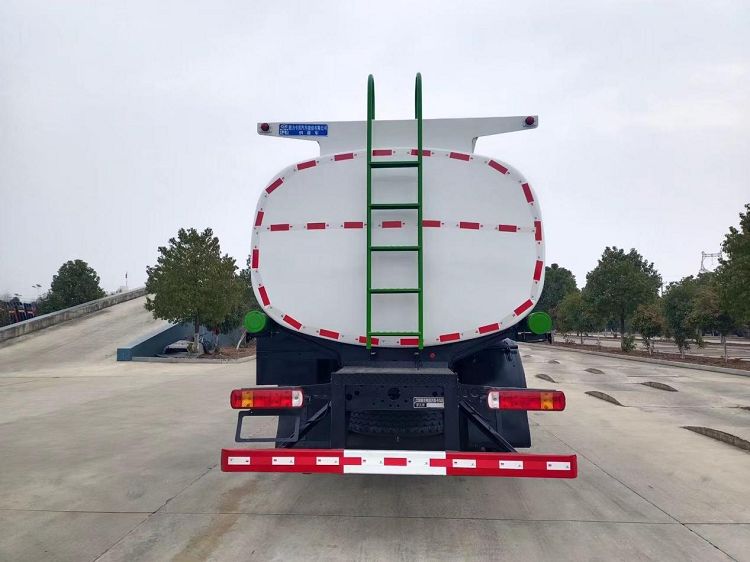

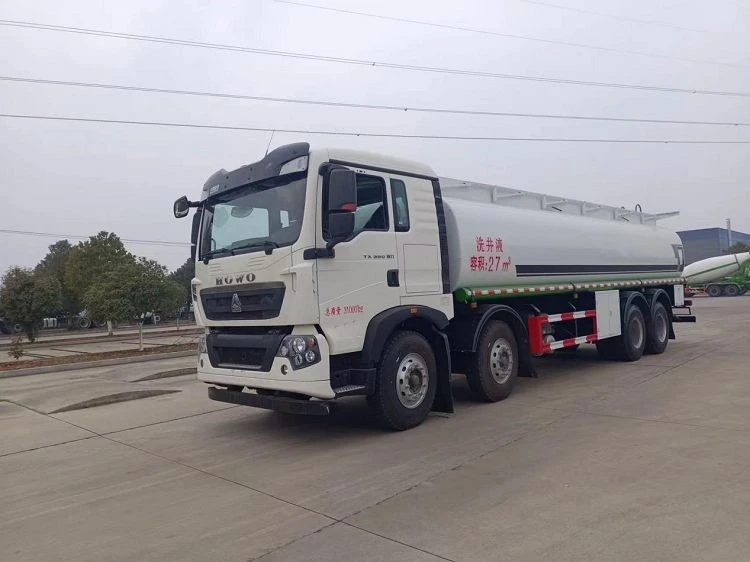

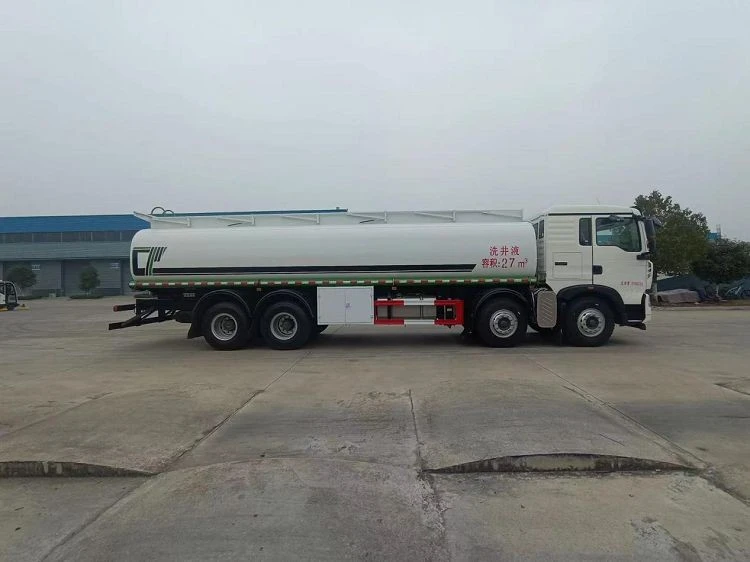

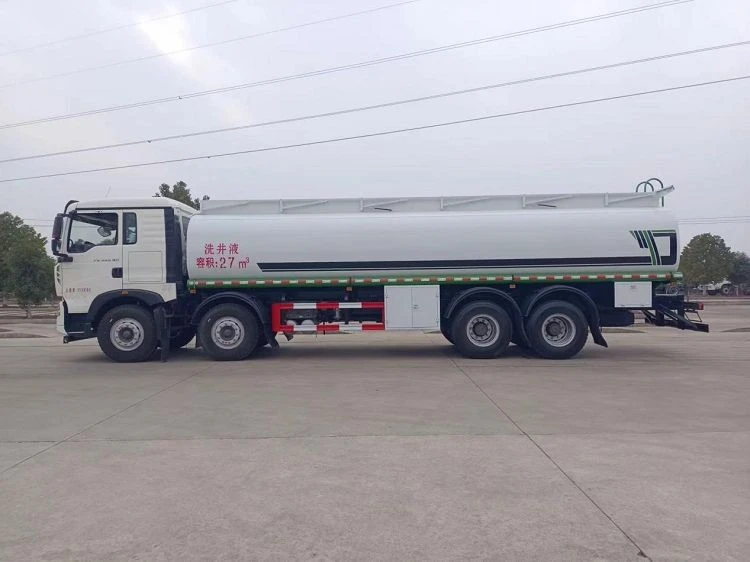

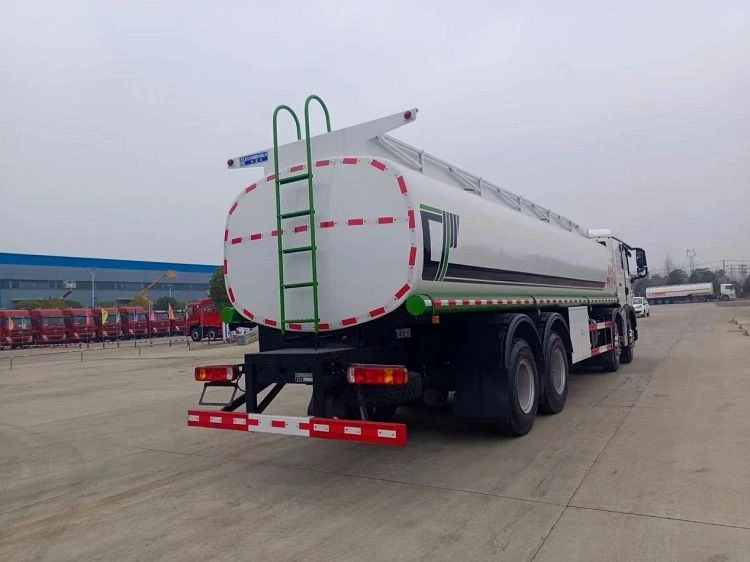

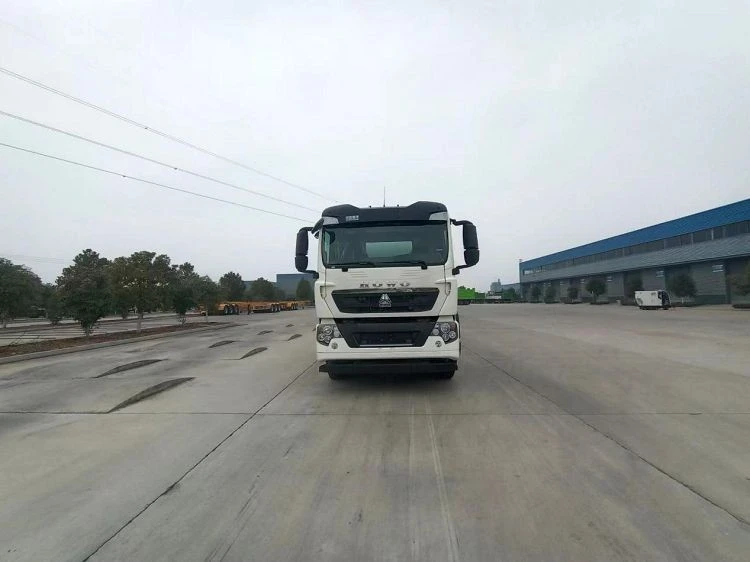

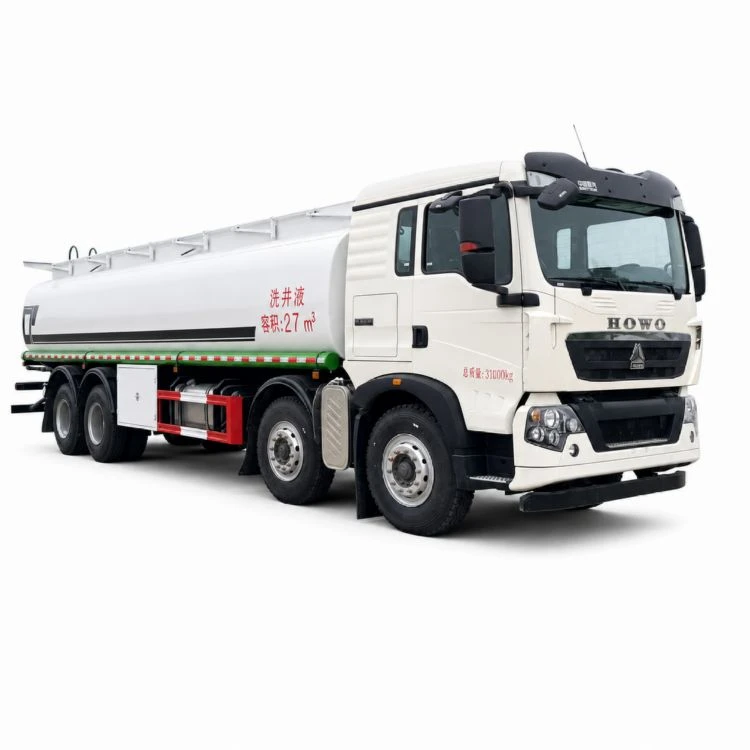

The HOWO 28 m³fuel tanker truck is a heavy 8x4 service vehicle intended for well-fracturing supply and the transport of compatible well-servicing or water-treatment liquids. The production description specifies a 27.5 m3 carbon-steel tank, while matched published data for model CLW5311TGYZ6 lists 26.4 m3 total and 25.15 m3 effective volume. A 350 hp MC07H engine and nine-speed transmission drive the TX5 chassis. The tank has two top openings, an 80/60 pump, four-inch pipework and a three-inch outlet. This arrangement provides the volume and transfer capability required to stage liquid near field equipment and maintain supply during service operations.
Our Advantages
- Field-service capacity: The large body is suited to staging liquid close to fracturing and well-service equipment.
- High-flow plumbing: A four-inch main line and 80/60 pump support efficient movement of compatible liquids.
- Heavy 8x4 platform: The TX5 chassis provides four axles and a 350 hp engine for a 31,000 kg gross-mass class.
- Simple two-opening tank: Two top access points and a direct outlet layout support inspection and transfer work.
FAQ
Product Parameters
|
Specification |
Reference Value |
|
Vehicle model |
CLW5311TGYZ6 |
|
Chassis model |
ZZ1317N466GF1 |
|
Configured body volume |
Approximately 27.5 m3 |
|
Published tank volume |
26.4 m3 total / 25.15 m3 effective |
|
Media |
Well-servicing liquid, water purifier or water-reducing agent; maximum density 640 kg/m3 |
|
Gross vehicle mass |
31,000 kg |
|
Rated payload |
16,100 or 16,165 kg |
|
Curb mass |
14,705 kg |
|
Overall dimensions |
11,870 x 2,550 x 3,430 mm |
|
Tank dimensions |
8,900 x 2,300 x 1,600 mm |
|
Configured engine |
MC07H.35-60, 257 kW / 350 hp |
|
Tank material |
Q235 carbon steel; 5 mm shell, 5.5 mm heads, 4 mm baffles |
|
Pump and pipework |
80/60 pump; 4-inch main line; 3-inch outlet |
|
Published maximum speed |
89 km/h |
