Hubei Ruitu Technology Co., Ltd. is one of the leading manufacturers and suppliers of howo 20 m³ oil transport tanker truck in China. If you're going to wholesale the newest howo 20 m³ oil transport tanker truck made in China, welcome to get quotation from our factory. All customized products and OEM products are with high quality and competitive price.

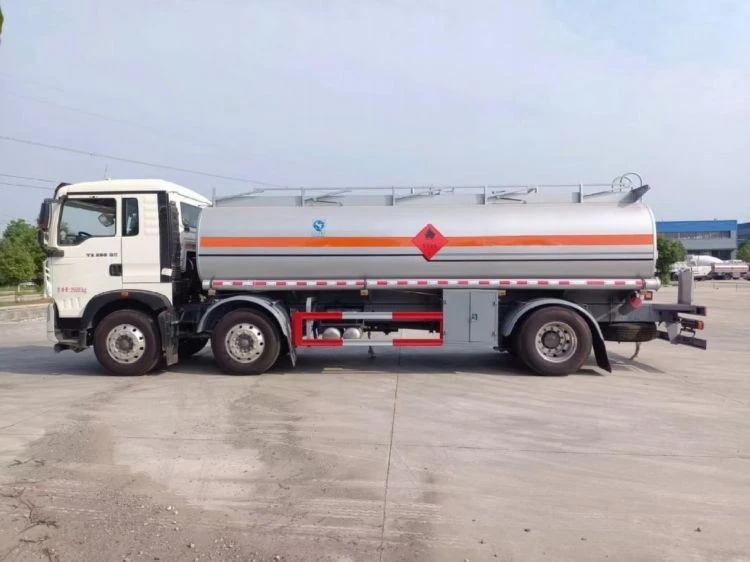

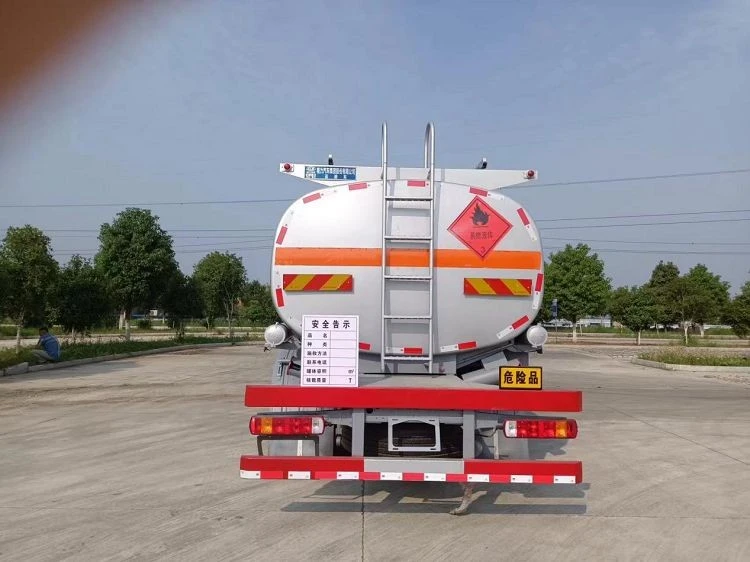

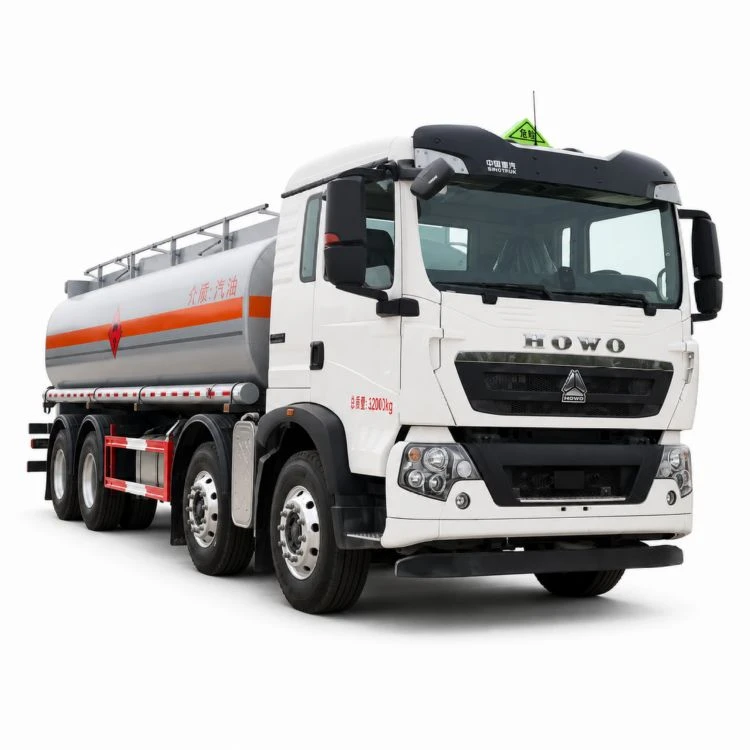

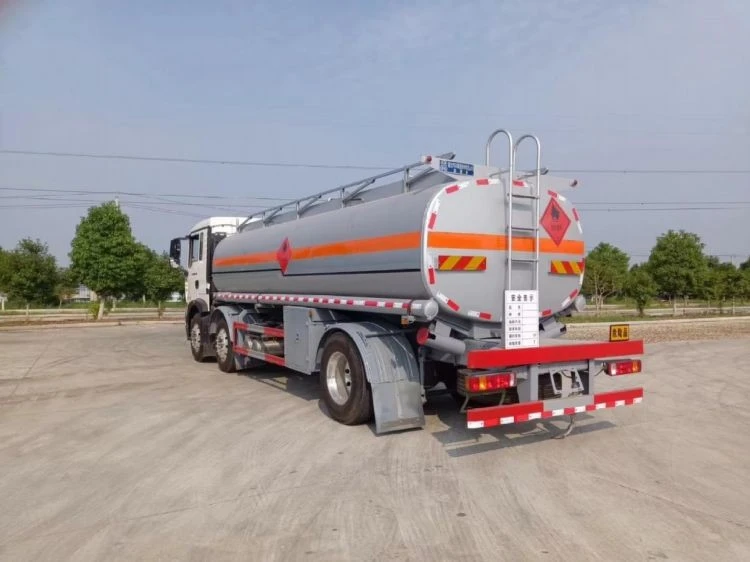

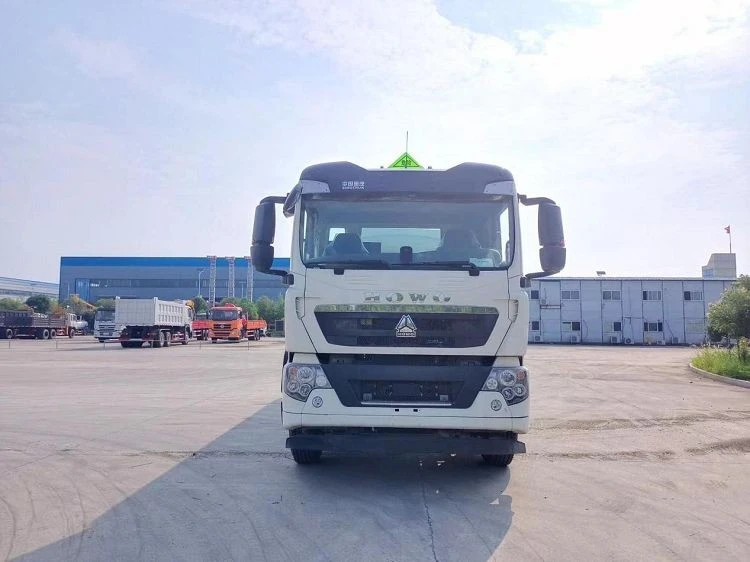

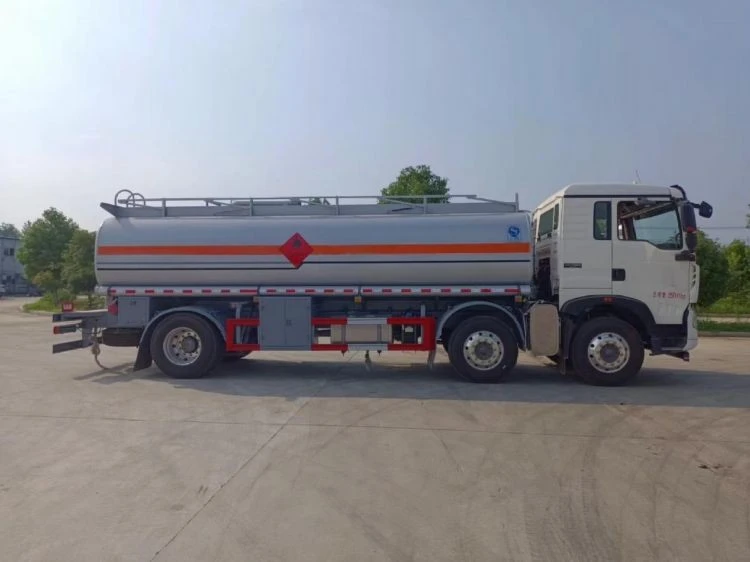

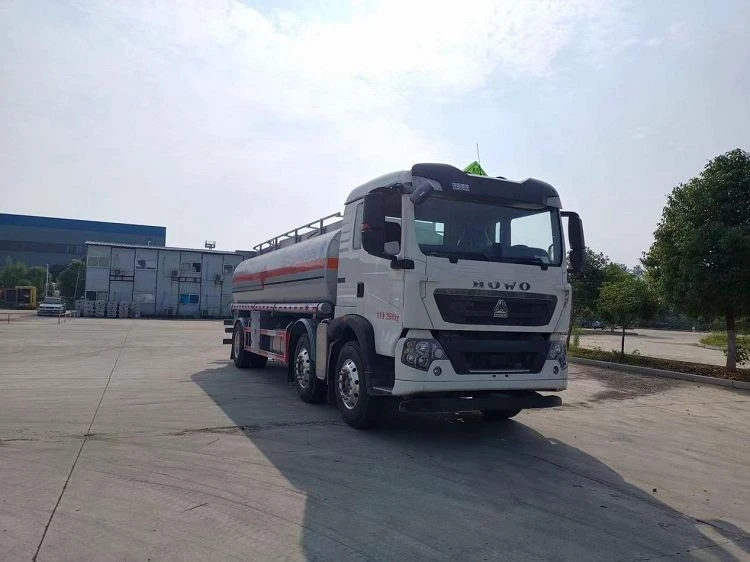

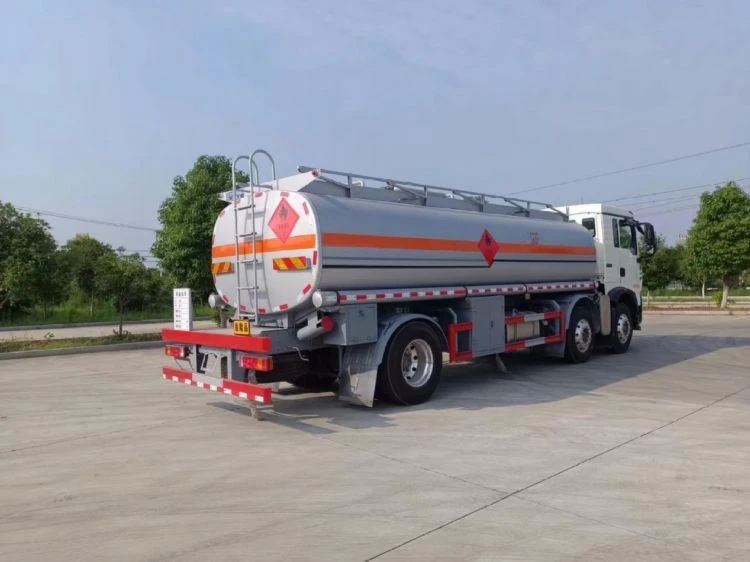

The HOWO 20 m³ Oil Transport Tanker Truck is a three-axle fuel-distribution tanker using a 350 hp MC07H engine, nine-speed transmission and rear air suspension. The production description specifies a 20 m3 effective Q235 tank, while the matched CL5262GYYZ6 published model lists 19.7 m3 total and 19.46 m3 effective capacity. One compartment, two Euro manholes and an 80/60 pump form the main transfer system. The body also includes an intelligent emergency bottom valve, bottom discharge, vapour recovery, overfill sensing and static-control equipment. This combination suits regional delivery routes that need substantial volume but do not require a full 8x4 chassis.
Our Advantages
- Three-axle efficiency: The chassis carries a substantial tank without the length and axle count of an 8x4 vehicle.
- Rear air suspension: The matched published configuration uses an air-suspended rear axle.
- 350 hp output: The selected MC07H engine provides ample reserve for regional loaded routes.
- Complete transfer station: The 80/60 pump works with vapour recovery, overfill sensing and emergency shut-off hardware.
FAQ
Product Parameters
|
Specification |
Reference Value |
|
Vehicle model |
CL5262GYYZ6 |
|
Chassis model |
ZZ1267N56CGF1K |
|
Nominal product capacity |
Approximately 20 m3 |
|
Published tank volume |
19.7 m3 total / 19.46 m3 effective |
|
Maximum medium density |
750 kg/m3 |
|
Gross vehicle mass |
25,500 kg |
|
Rated payload |
14,600 or 14,665 kg |
|
Curb mass |
10,705 kg |
|
Overall dimensions |
10,000 x 2,500 x 3,230 mm |
|
Tank dimensions |
6,950 x 2,300 x 1,500 mm |
|
Configured engine |
MC07H.35-60, 257 kW / 350 hp |
|
Transmission |
HW13709XSTC2 nine-speed |
|
Tank material |
Q235 carbon steel; 5 mm shell and baffles, 5.75 mm heads |
|
Maximum speed |
80 km/h |
