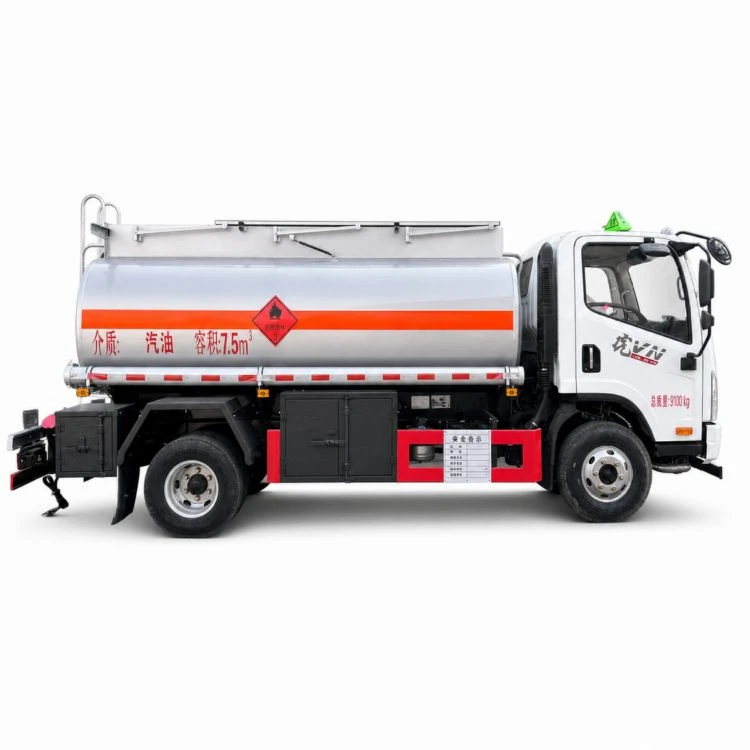

FAW 8 M³ Fuel Truck

FAW 8 M³ Fuel Truck

Details
The FAW 8 m³Fuel Truck combines a single-compartment tank with one Euro manhole, gear pump and complete lower-loading controls. Folding rails, a non-slip top walkway, hoses, extinguishers and a tool box provide the access and storage needed for daily fuel delivery.
Category
Fuel Tanker Truck
Share to
Send Inquiry
Description
Technical Parameters

Hubei Ruitu Technology Co., Ltd. is one of the leading manufacturers and suppliers of faw 8 m³ fuel truck in China. If you're going to wholesale the newest faw 8 m³ fuel truck made in China, welcome to get quotation from our factory. All customized products and OEM products are with high quality and competitive price.

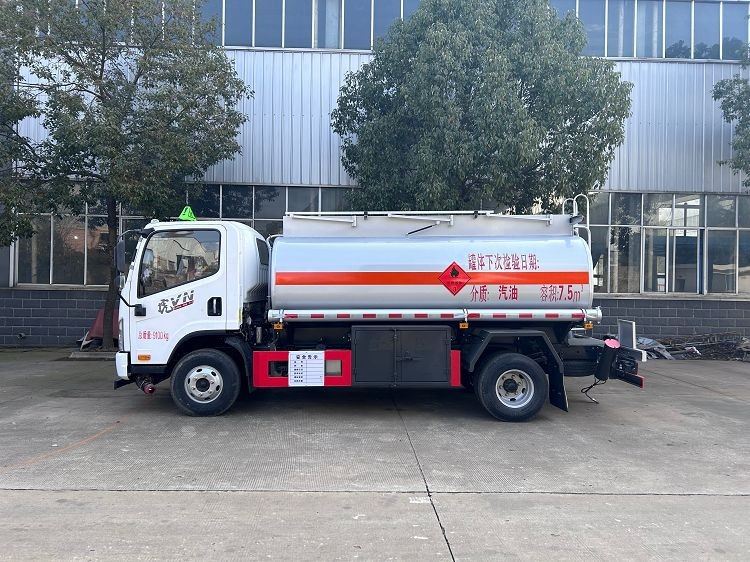

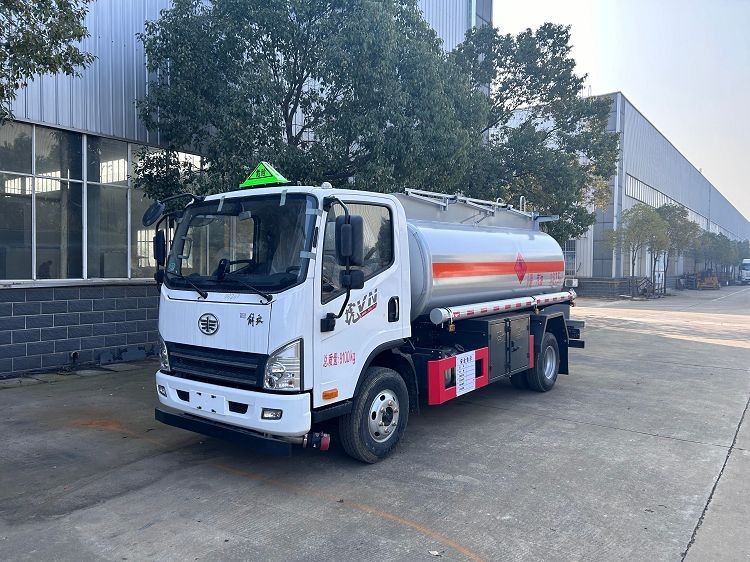

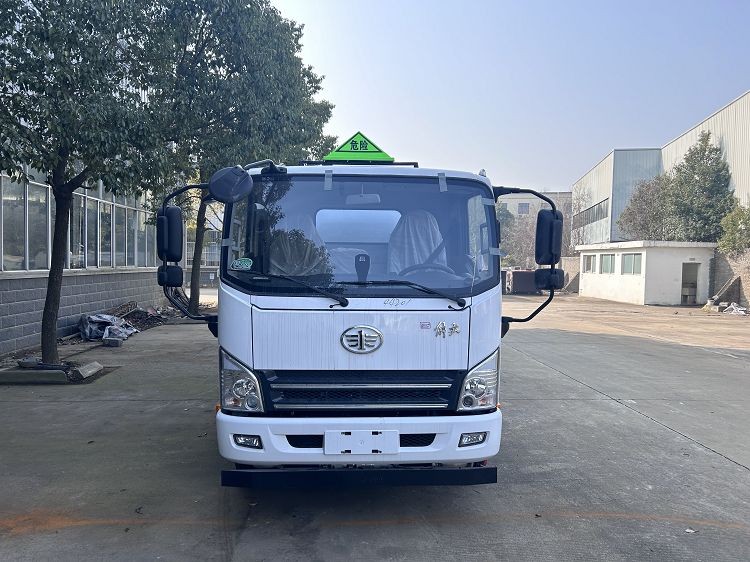

The FAW 8 m³Fuel Truck is a compact distribution vehicle powered by a 140 hp FAW engine and a six-speed transmission. Its 3,600 mm wheelbase and 6,280 mm overall length are suited to local routes, work sites and fleet yards. The Q235 carbon-steel tank can be used for gasoline or diesel in the referenced configuration and is supplied as one compartment. A gear pump, bottom loading, vapour recovery, overfill monitoring and an emergency bottom valve cover routine transfer work. Buyers who need point-of-use refuelling can add a high-flow dispenser, 15 m automatic reel and nozzle without changing the core tank arrangement.

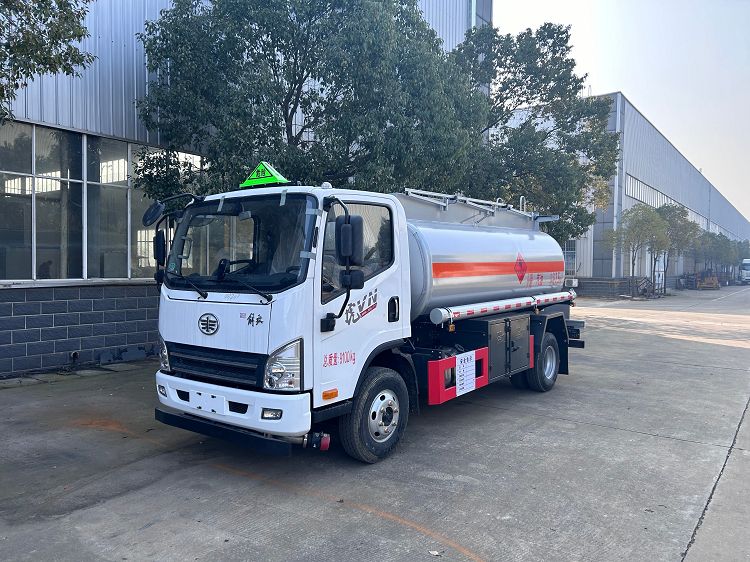

20260805104527001
20260805104537001

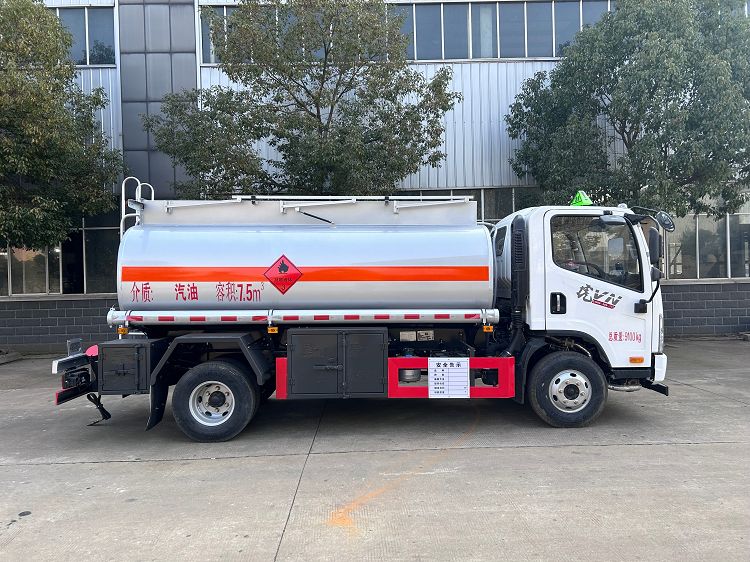

20260805104543001
20260805104547001

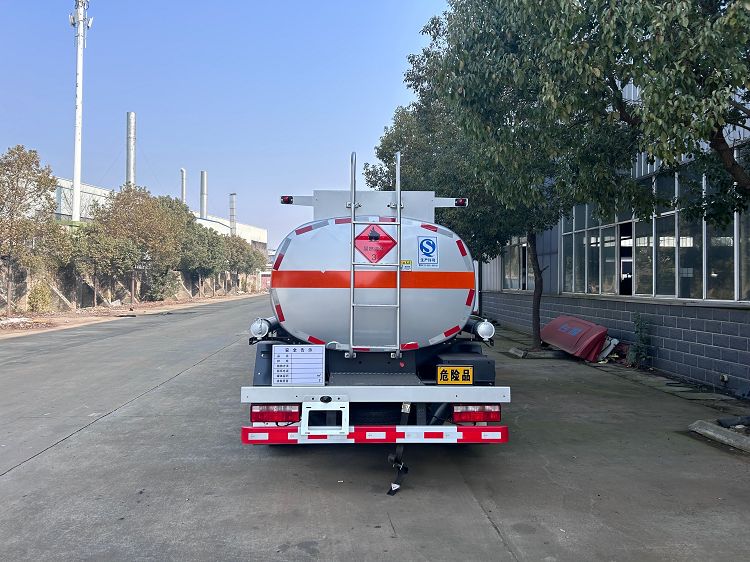

20260805104551001



Our Advantages



  • Local-delivery size: The 6.28 m overall length is practical for secondary roads and commercial yards.
  • Useful payload ratio: A 5,000 kg rated payload is listed within the 9,100 kg gross-mass class.
  • FAW powertrain: The 140 hp engine and six-speed gearbox provide a familiar driveline for daily regional work.
  • Upgradeable dispensing: The pump-based tanker can be equipped with a meter and hose reel for direct refuelling.



FAQ



Q: What routes suit the FAW 8 m³Fuel Truck?

A: It is a good fit for local distribution, construction support, agricultural supply and fleet-yard refuelling.

Q: What is the rated payload?

A: The matched published data lists a 5,000 kg rated payload.

Q: Can both gasoline and diesel be specified?

A: Both media appear in the source configuration. The final tank, seals and compartment plan must match the selected product.

Q: Does the base truck include metered dispensing?

A: The gear pump and transfer package are standard in the description; a high-flow dispenser and 15 m reel are optional.

Q: Can the tank be split into two chambers?

A: Yes, subject to engineering confirmation of chamber volumes, axle loads and the applicable vehicle approval.





Product Parameters



Specification

Reference Value

Vehicle model

CLQ5091GJY6CAQ

Chassis model

CA1091P40K61L2BE6A84

Tank volume

7.5 m3 total / 7.14 m3 effective

Permitted media

Diesel or gasoline; maximum medium density 700 kg/m3

Gross vehicle mass

9,100 kg

Rated payload

5,000 kg

Curb mass

3,905 kg

Overall dimensions

6,280 x 2,200 x 2,800 mm

Tank dimensions

4,000 x 1,850 x 1,250 mm

Wheelbase

3,600 mm

Engine

CA4DB1-14E68, 100 kW / 140 hp

Transmission

WLY six-speed

Tyres

7.50R16LT 16PR

Maximum speed

79 km/h
