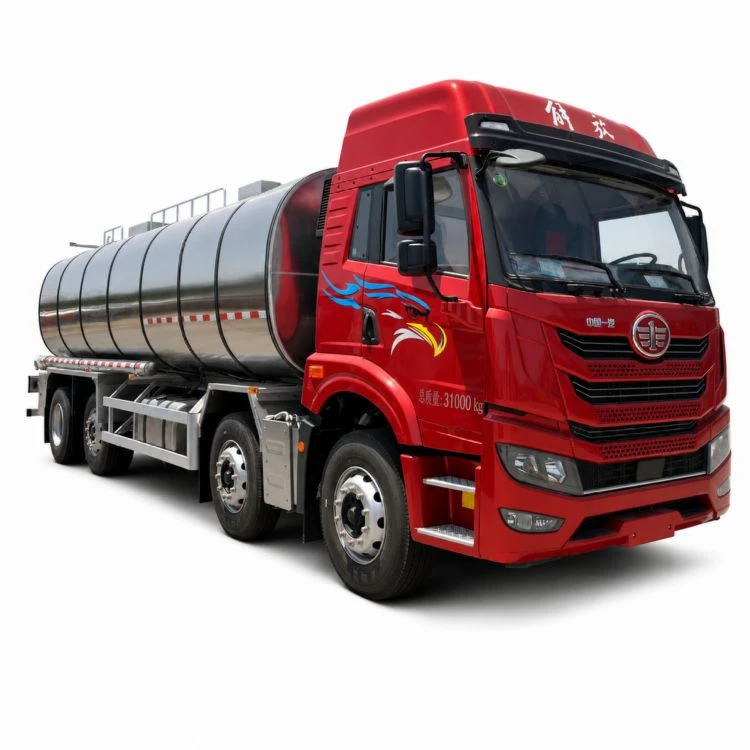

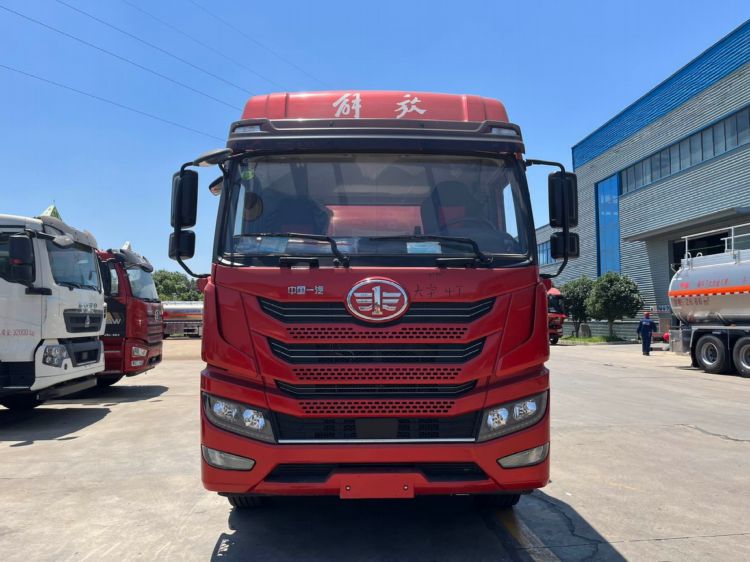

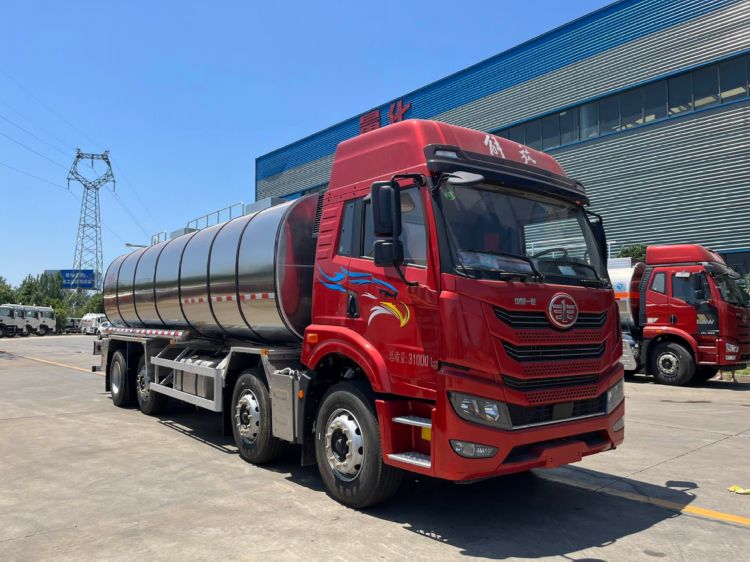

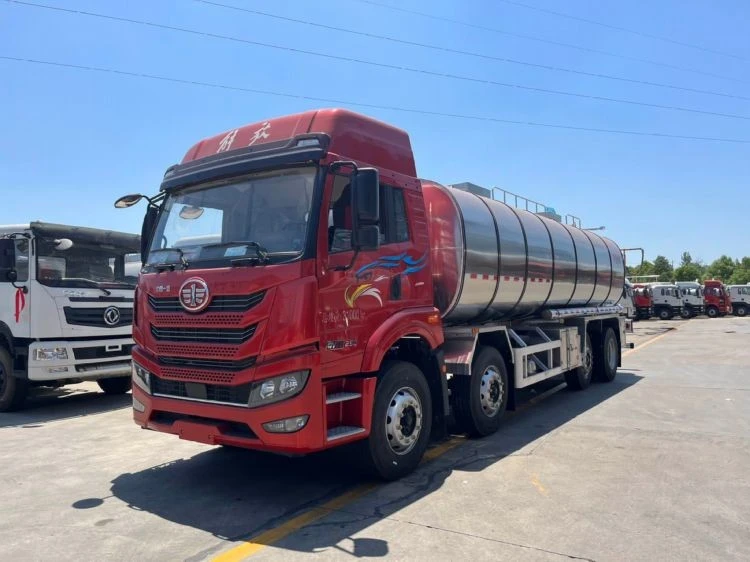

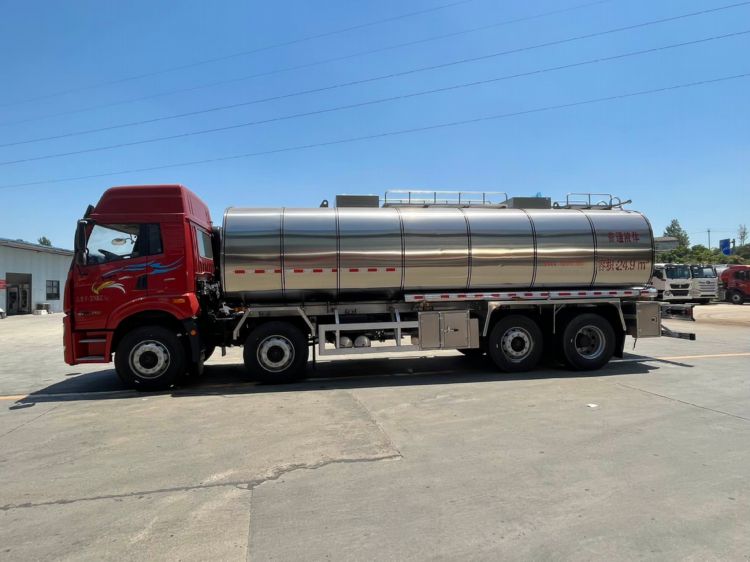

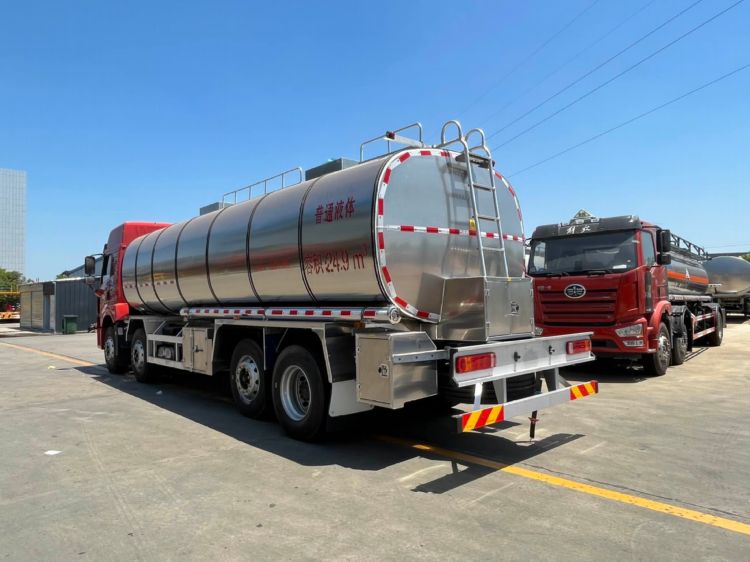

The FAW 25 m³Fuel Tank Truck is an 8x4 carrier for compatible ordinary liquids that require temperature protection during transport. The aluminum-alloy inner tank is surrounded by an 80 mm insulation layer and a 304 stainless-steel outer skin. A 290 hp FAW engine, nine-speed transmission and 1,900 + 4,160 + 1,350 mm wheelbase support the 31,000 kg chassis. The tank is arranged as one compartment with two top openings and an 80/60 gear pump for suction and discharge. Aluminum valves, guards, ladder and storage components help reduce corrosion exposure around the working body.
Our Advantages
- Insulated construction: The 80 mm layer helps slow temperature change during transit.
- Corrosion-conscious body: An aluminum inner tank and stainless outer skin reduce exposed carbon-steel surfaces.
- High rated payload: Published data lists up to 19,765 kg within a 31,000 kg gross-mass class.
- Pumped transfer: The 80/60 gear pump supports suction and discharge through an aluminum valve system.
FAQ
Product Parameters
|
Specification |
Reference Value |
|
Vehicle model |
CL5310GPGC6 |
|
Chassis model |
CA1310P1K2L7T10BE6A80 |
|
Nominal product volume |
Approximately 25 m3 |
|
Published tank volume |
24.9 m3 total / 23.8 m3 effective |
|
Maximum medium density |
830 kg/m3 |
|
Gross vehicle mass |
31,000 kg |
|
Rated payload |
19,700 or 19,765 kg |
|
Curb mass |
11,105 kg |
|
Overall dimensions |
10,990 x 2,550 x 3,400 mm |
|
Internal tank dimensions |
7,800 x 2,340 x 1,680 mm |
|
Configured wheelbase |
1,900 + 4,160 + 1,350 mm |
|
Engine |
CA6DLD-29E6, 215 kW / 290 hp |
|
Inner tank |
5182 aluminum; 6 mm shell and heads, 5 mm baffles |
|
Insulation / cladding |
80 mm insulation with 304 stainless-steel outer skin |
